Block Heater: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
- Remove the air cleaner. Refer to: Air Cleaner .
- Remove the LH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe LH .

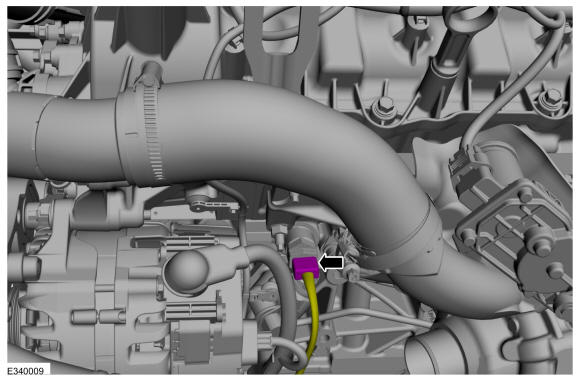

- Disconnect the block heater electrical connector.
- Remove the block heater.
Torque
: 41 lb.ft (55 Nm)
