Wastegate Control Actuator LH: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the left front fender splash shield. Refer to: Fender Splash Shield .
- Disconnect the wastegate control actuator electrical connector.

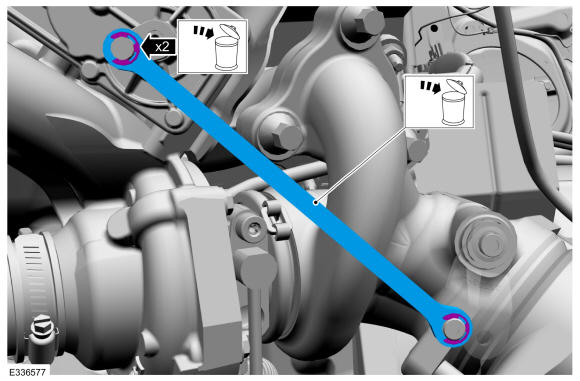

- Remove and discard the wastegate control actuator linkage e-clips, then remove and discard the linkage.
- Remove and discard the wastegate control actuator linkage wave washers.

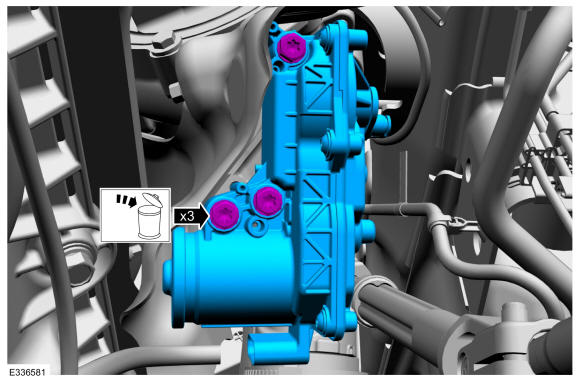

- Remove and discard the wastegate control actuator bolts, then remove the wastegate control actuator.
