Wastegate Control Actuator LH: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

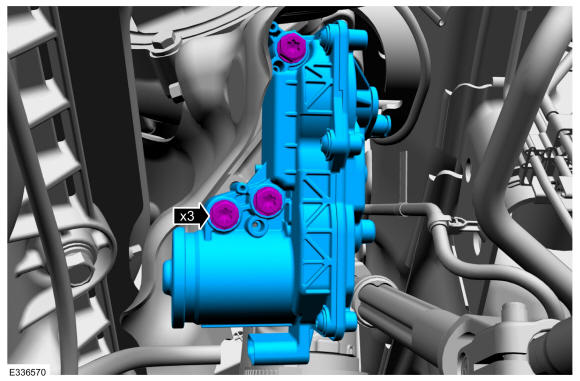

- Install the wastegate control actuator, then install and tighten the new bolts.
Torque
: 62 lb.in (7 Nm)

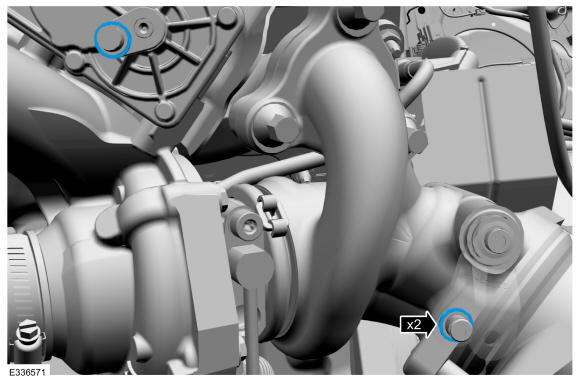

- Install the wastegate control actuator linkage wave washers.

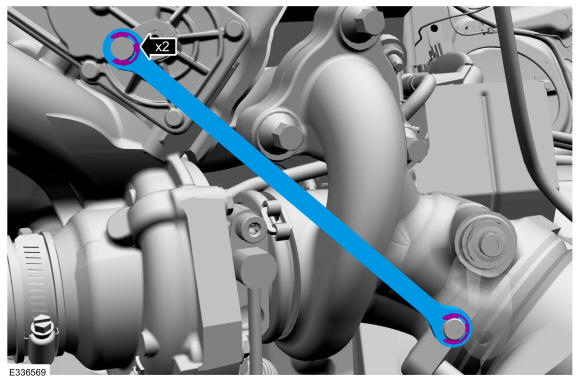

- Install the new wastegate control actuator linkage, then install the new e-clips.

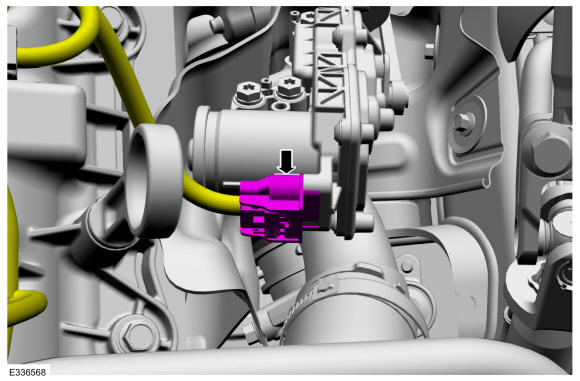

- Connect the wastegate control actuator electrical connector.
-
NOTE: Substantial opening and closing torque is applied by this system. To prevent injury, be careful to keep fingers away from wastegate mechanism when actuated. Failure to follow these instructions may result in personal injury.
- With the KOEO, using a diagnostic scan tool, clear the PCM DTC's and reset the KAM.
- Install the left front fender splash shield. Refer to: Fender Splash Shield .
