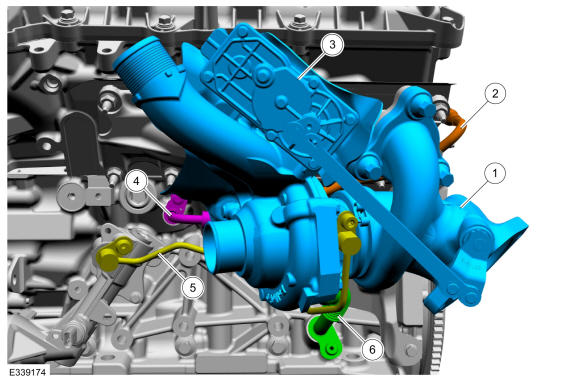

Turbocharger 3.5L EcoBoost/PowerBoost LH
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Turbocharger LH |
| 2 |
Turbocharger coolant return tube LH |
| 3 |
Wastegate control actuator LH |
| 4 |
Turbocharger coolant supply tube LH |
| 5 |
Turbocharger oil supply tube LH |
| 6 |
Turbocharger oil return tube LH |
