Transmission Fluid Heater Coolant Control Valve: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

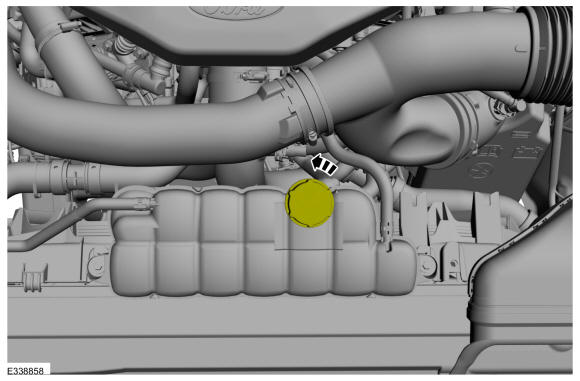

- WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.
Loosen the pressure relief cap.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

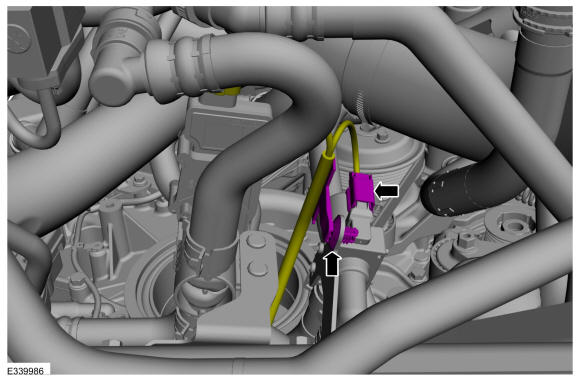

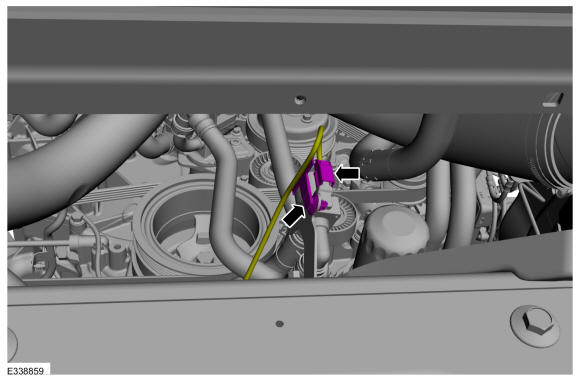

- Detach the wiring harness retainer and disconnect the coolant control valve electrical connector.

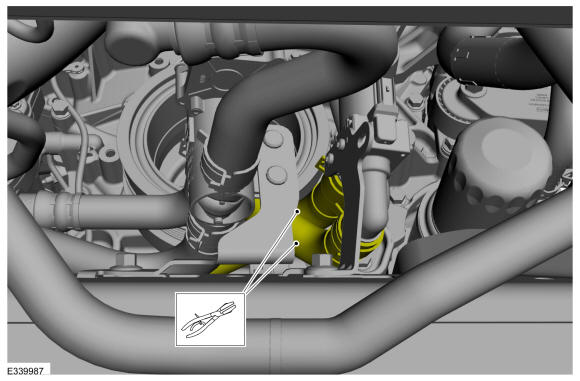

- Clamp off the coolant control valve hoses.

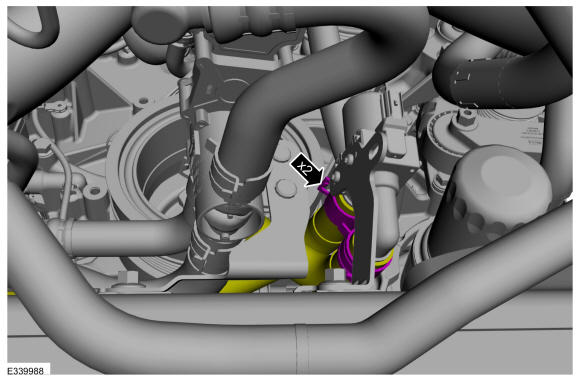

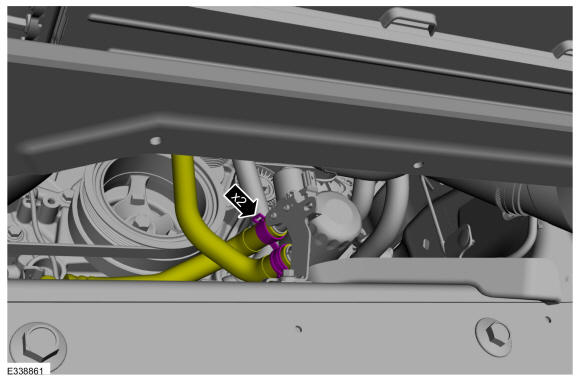

- Release the clamps and disconnect the coolant hoses.
Use the General Equipment: Hose Clamp Remover/Installer

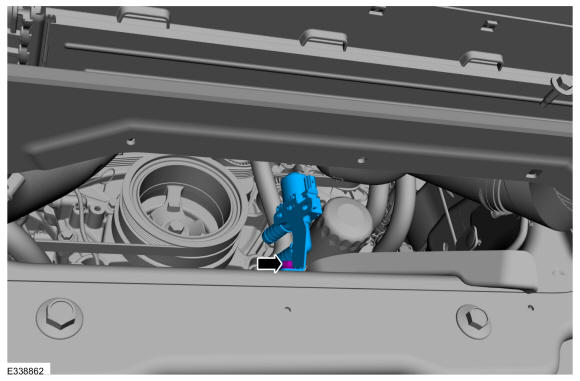

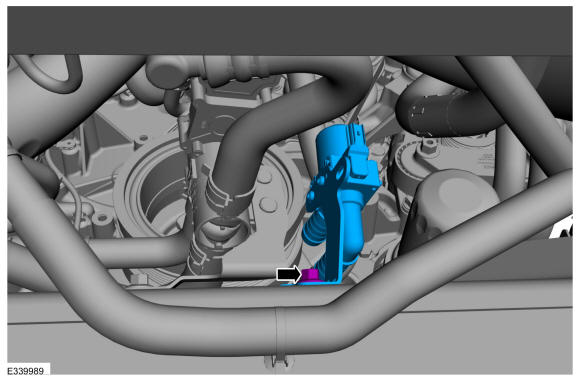

- Remove the bolt and the transmission fluid heater coolant control valve.
