Removal And Installation: Thermostat: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

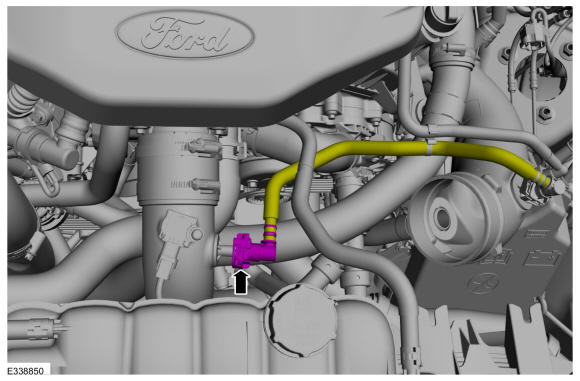

- Disconnect PCV hose from CAC outlet tube.

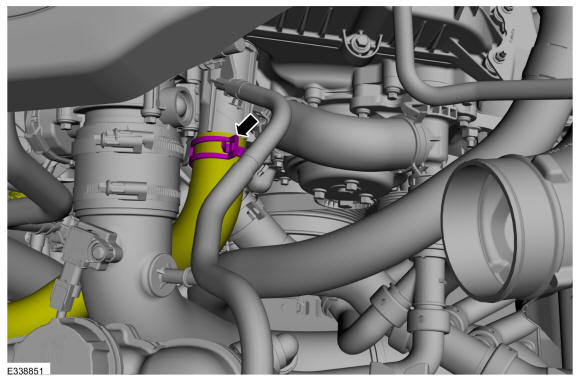

- Release the clamp and disconnect the coolant hose.
Use the General Equipment: Hose Clamp Remover/Installer
-
NOTE: During installation, make sure the coolant outlet connection is fully seated on the thermostat housing before tightening the bolts.

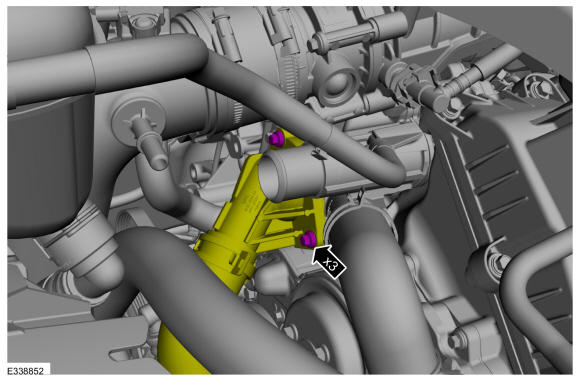

Remove the bolts and position the coolant outlet connector aside.
Torque
: 89 lb.in (10 Nm)
-

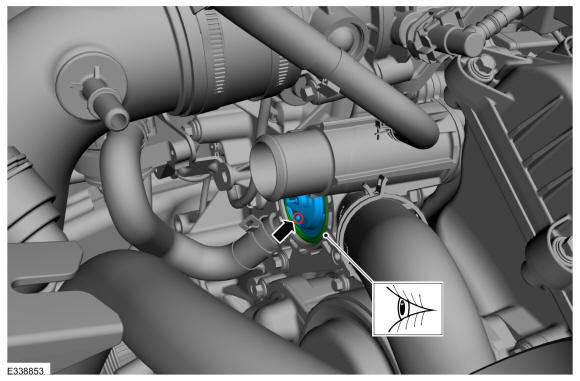

NOTE: During installation verify the thermostat vent hole is at the 12 o'clock position.
Remove the thermostat. Inspect the O-ring seal and replace it if necessary.
