Thermostat Housing: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the intake manifold. Refer to: Intake Manifold .

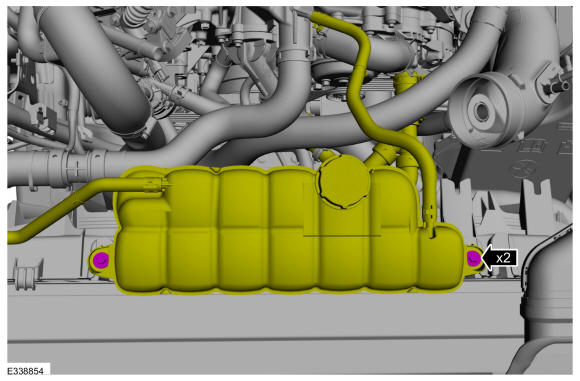

Remove the bolts and position the degas bottle aside.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Cover the accessory drive belts to prevent coolant contamination of the belts.

Completely cover the accessory drive belts with waterproof plastic.

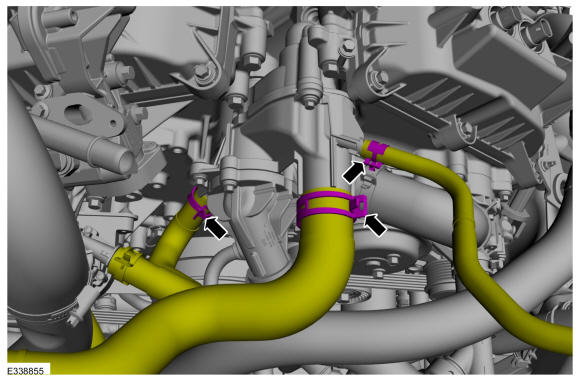

Release the clamps and disconnect the coolant hoses.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
Release the clamps and disconnect the coolant hoses.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
NOTE: Do not allow the coolant inlet pipe to come out of the coolant crossover manifold assembly or the coolant inlet pipe O-ring seal may be damaged.

NOTE: Use the ear on the top of the coolant inlet pipe to prevent the coolant pipe from coming out of the coolant crossover manifold assembly.

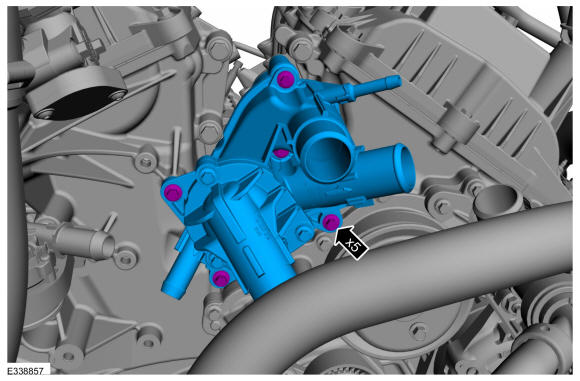

Remove the bolts and the thermostat housing.

Torque

:Stage 1: 89 lb.in (10 Nm)

Stage 2: 45°

Courtesy of FORD MOTOR COMPANY

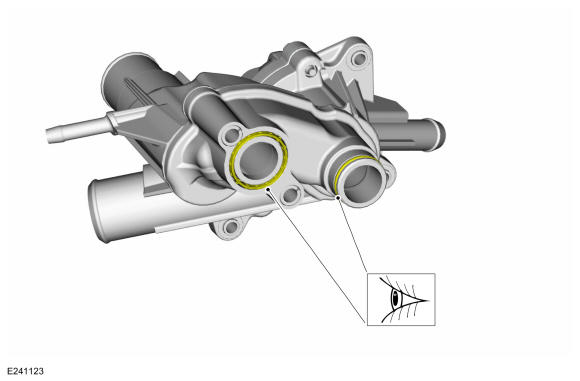

Inspect the O-ring seals and replace if necessary.

Courtesy of FORD MOTOR COMPANY
