Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal
WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
RH (right-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids
- Remove the RH valve cover. REFER to: Valve Cover RH .

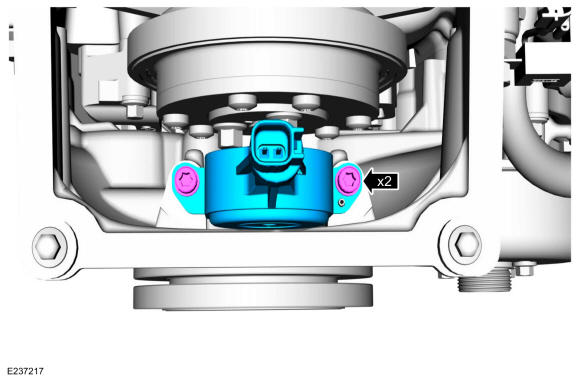

- Remove the bolts and the RHVCT oil control solenoid.
Torque:
Stage 1: 71 lb.in (8 Nm)
Stage 2: 30°
LH (left-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids
- Remove the LH valve cover. REFER to: Valve Cover LH .

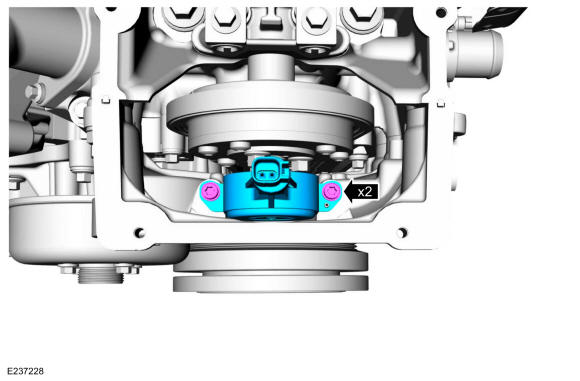

- Remove the bolts and the LHVCT oil control solenoid.
Torque:
Stage 1: 71 lb.in (8 Nm)
Stage 2: 30°
