Intake Manifold Runner Control (IMRC) Actuator: Removal
WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the IMRC position sensors. REFER to: Intake Manifold Runner Control (IMRC) Position Sensor .

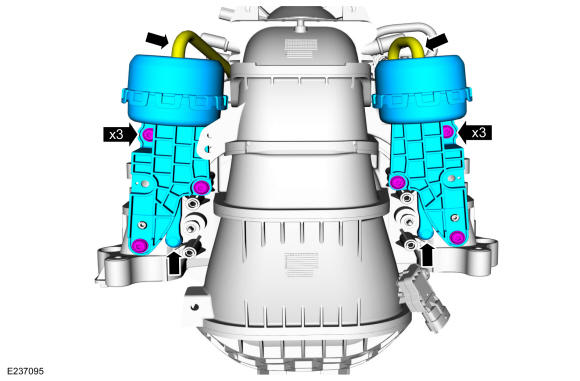

- Remove the hoses, retainers and the IMRC actuators.
Torque: 53 lb.in (6 Nm)
