Cylinder Head Temperature (CHT) Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the intake manifold. REFER to: Intake Manifold .
-
NOTE: Do not reuse the CHT sensor, install a new sensor.

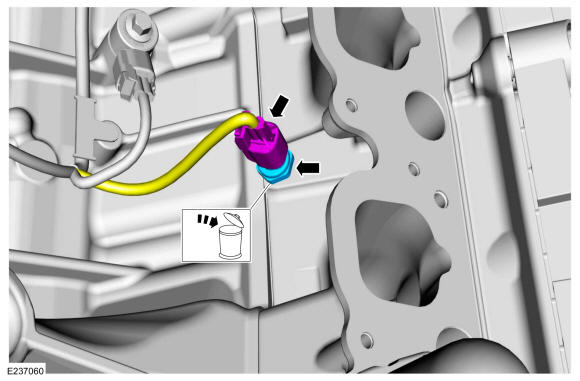

Disconnect the CHT sensor, remove and discard the CHT sensor.
Torque: 97 lb.in (11 Nm)
