Crankshaft Position (CKP) Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the intake manifold. REFER to: Intake Manifold .

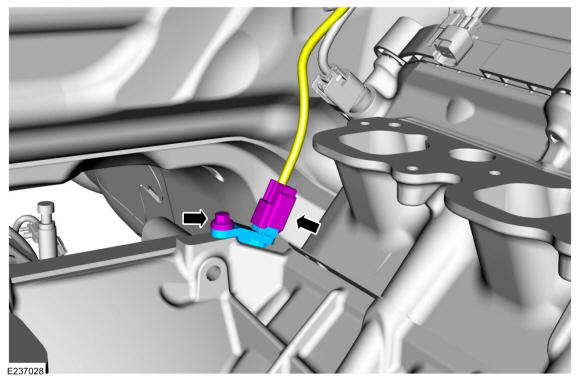

- Disconnect the CKP sensor electrical connector, and remove the CKP sensor.
