Clutch Pedal Position (CPP) Switch: Removal

WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

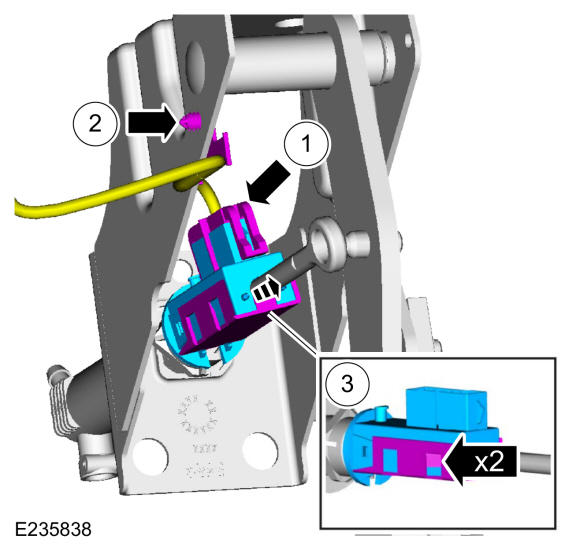

  1. Remove the CPP switch.

    1. Disconnect the CPP switch electrical connector.
    2. Remove the wiring harness retainer and position aside the wiring harness.
    3. Pull outward the CPP switch, release the clips and remove the CPP switch cover. Remove the CPP switch from the clutch master cylinder push rod.

GFD203905Courtesy of FORD MOTOR COMPANY
