Electronic Engine Controls - Component Location
WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

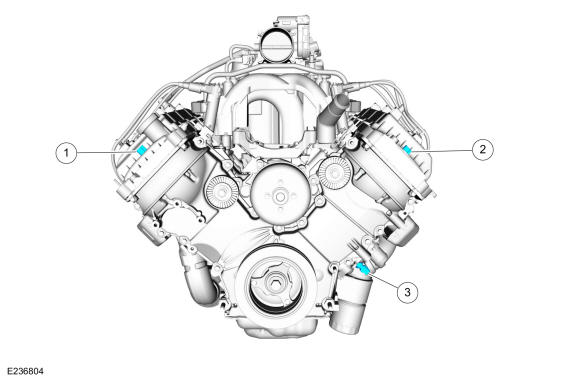

Electronic Engine Controls- Front
| Item | Description |
|---|---|
| 1 | RHVCT oil control solenoid |
| 2 | LHVCT oil control solenoid |
| 3 | EOP sensor |

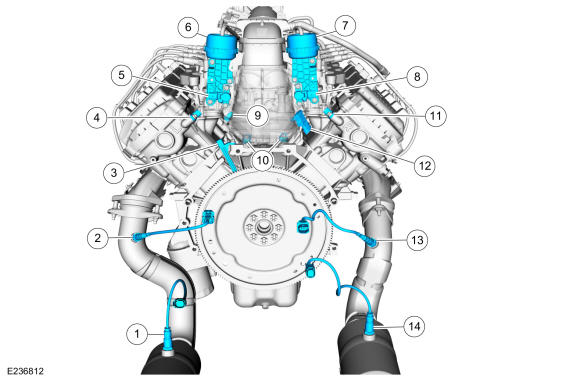

Electronic Engine Controls - Rear
| Item | Description |
|---|---|
| 1 | Catalyst monitor sensor |
| 2 | HO2S |
| 3 | CKP sensor |
| 4 | Left hand CMP sensor |
| 5 | Left hand IMRC position sensor |
| 6 | Left hand IMRC actuator |
| 7 | Right hand IMRC actuator |
| 8 | Right hand IMRC position sensor |
| 9 | CHT sensor |
| 10 | KS |
| 11 | Right hand CMP sensor |
| 12 | MAP sensor |
| 13 | HO2S |
| 14 | Catalyst monitor sensor |
Powertrain Control Module (PCM)
| Item | Description |
|---|---|
| 1 | PCM |

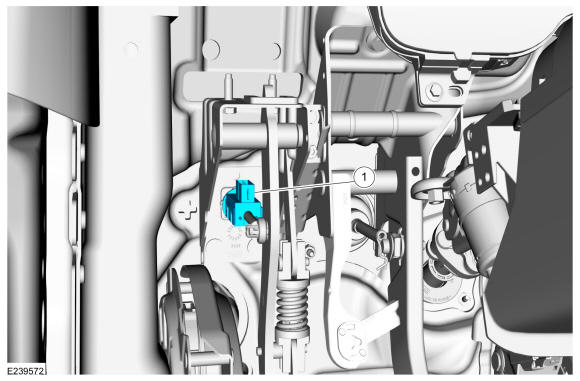

Clutch Pedal Position (CPP) Switch
| Item | Description |
|---|---|
| 1 | CPP switch |
