Coolant Pump Belt: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

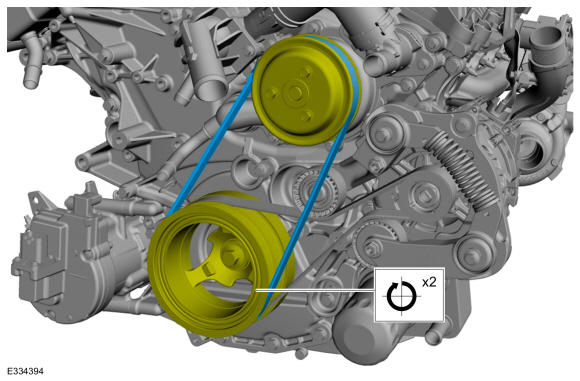

  1. Using the special tool, install the replacement belt.

    Use Special Service Tool: 303-1252 Stretchy Belt Remover/ Installer Tool.

    GFD557573Courtesy of FORD MOTOR COMPANY
  2. Make sure the accessory drive belt is correctly seated on all the pulleys.
GFD557574Courtesy of FORD MOTOR COMPANY
