Variable Camshaft Timing (VCT) Unit: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

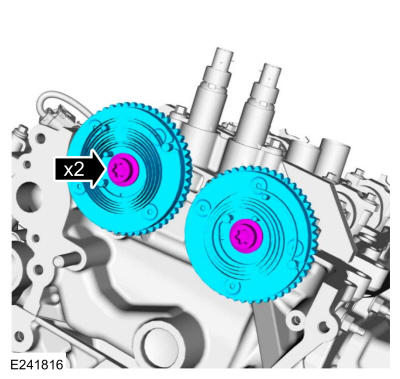

LH variable camshaft timing (VCT) unit

1. Install the VCT units.
2. Install the new VCT unit bolts.
  Torque: Stage 1: 30 lb.ft (40 Nm); Stage 2: Loosen: 360°; Stage 3: 18 lb.ft (25 Nm); Stage 4: 150°
Courtesy of FORD MOTOR COMPANY
Install the LH timing chain. Refer to: Timing Chain .

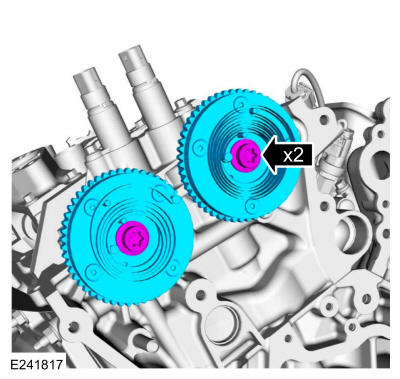

RH variable camshaft timing (VCT) unit
1. Install the VCT units.
2. Install the new VCT unit bolts.
  Torque: Stage 1: 30 lb.ft (40 Nm); Stage 2: Loosen: 360°; Stage 3: 18 lb.ft (25 Nm); Stage 4: 150°
Courtesy of FORD MOTOR COMPANY
Install the RH timing chain. Refer to: Timing Chain .
All vehicles
Road test the vehicle.
