Oil Pump: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.

4x2/4x4

  1. Remove the engine front cover. Refer to: Engine Front Cover .
  2. Install the crankshaft pulley bolt.
    GFD553832Courtesy of FORD MOTOR COMPANY

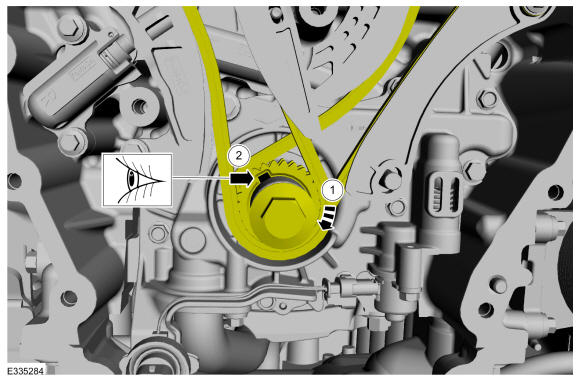

    1. Rotate the crankshaft clockwise.
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.
    GFD553833Courtesy of FORD MOTOR COMPANY

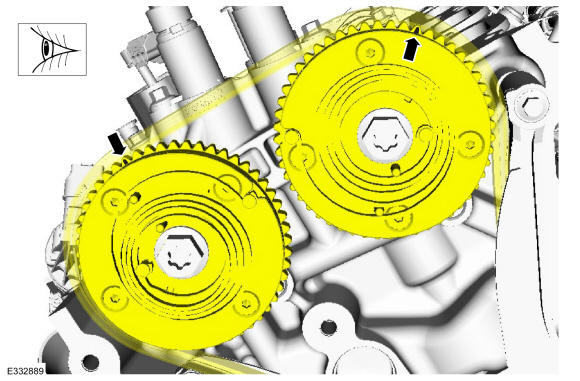

  3. Verify the timing marks on the VCT units are at the positions shown.
    GFD553834Courtesy of FORD MOTOR COMPANY

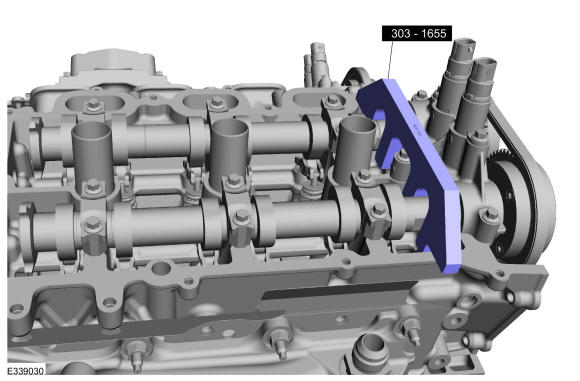

  4. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1655 Tool, Camshaft Holding.

    GFD553835Courtesy of FORD MOTOR COMPANY

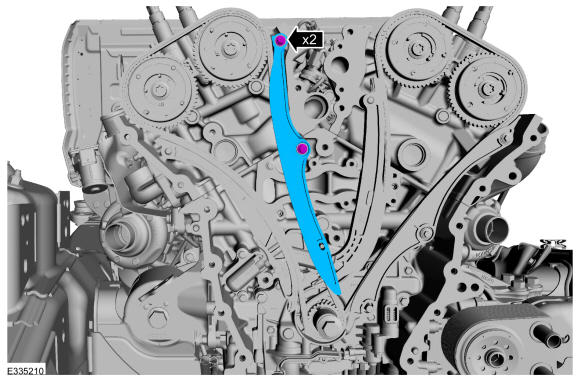

  5. Remove the bolts and the RH timing chain guide.
    GFD553836Courtesy of FORD MOTOR COMPANY

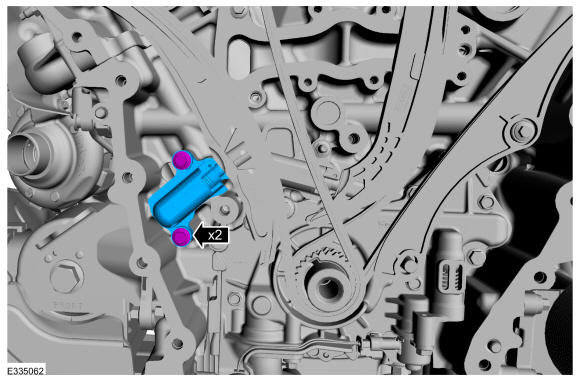

  6. Remove the bolts and the RH timing chain tensioner.
    GFD553837Courtesy of FORD MOTOR COMPANY
  7. Remove the RH timing chain tensioner arm.
    GFD553838Courtesy of FORD MOTOR COMPANY

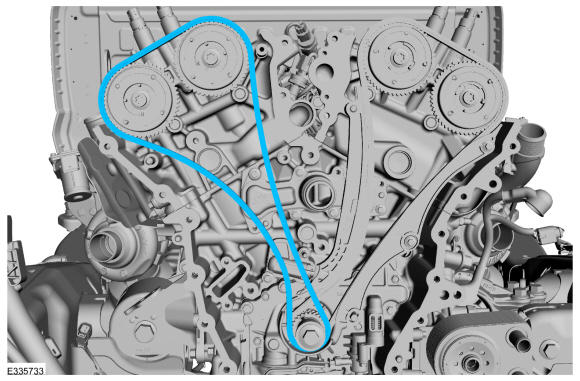

  8. Remove the RH timing chain.
    GFD553839Courtesy of FORD MOTOR COMPANY

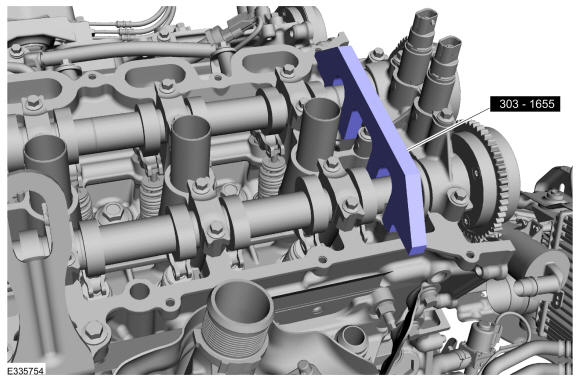

  9. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Remove Special Service Tool: 303-1655 Tool, Camshaft Holding.

    GFD553840Courtesy of FORD MOTOR COMPANY

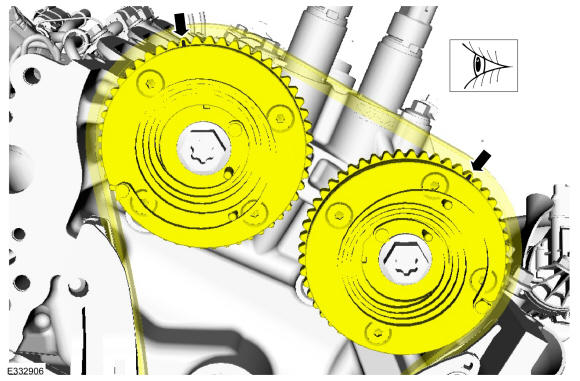

  10. Verify the timing marks on the VCT units are at the positions shown.
    GFD553841Courtesy of FORD MOTOR COMPANY
  11. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1655 Tool, Camshaft Holding.

    GFD553842Courtesy of FORD MOTOR COMPANY

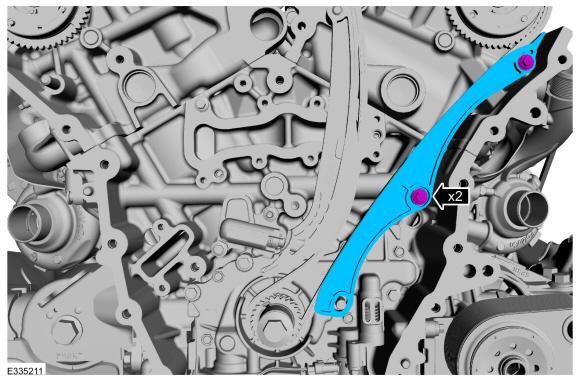

  12. Remove the bolts and the LH timing chain guide.
    GFD553843Courtesy of FORD MOTOR COMPANY

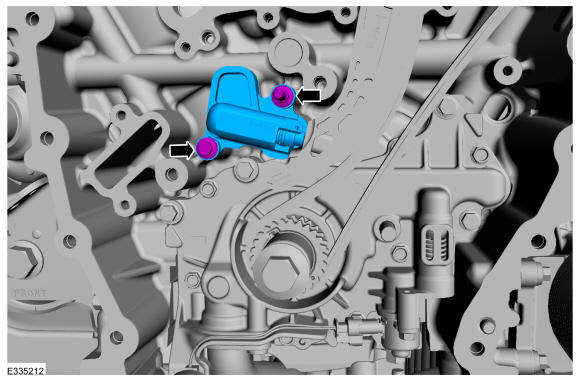

  13. Remove the studbolt, bolt and the LH timing chain tensioner.
    GFD553844Courtesy of FORD MOTOR COMPANY
  14. Remove the LH timing chain tensioner arm.
    GFD553845Courtesy of FORD MOTOR COMPANY

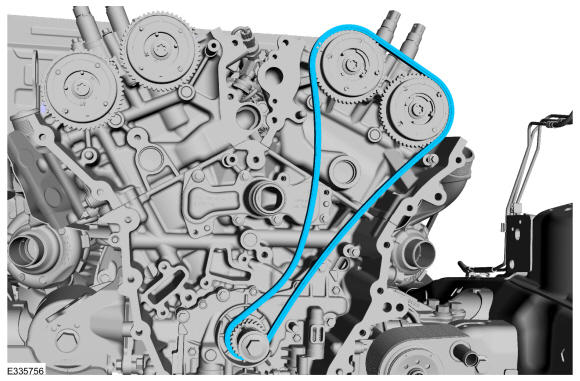

  15. Remove the LH timing chain.
    GFD553846Courtesy of FORD MOTOR COMPANY

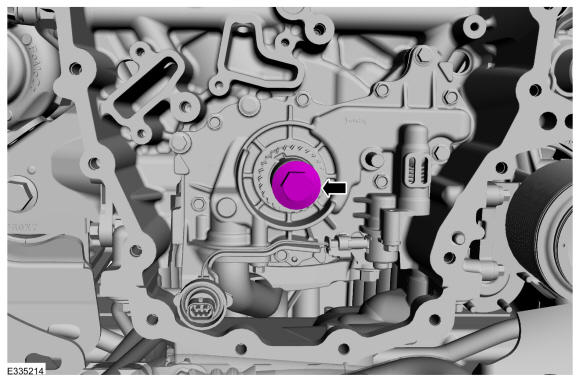

  16. Remove the crankshaft pulley bolt.
    GFD553847Courtesy of FORD MOTOR COMPANY
  17. Remove the timing chain sprocket.
    GFD553848Courtesy of FORD MOTOR COMPANY
  18. Remove the nut and position the cooler tubes aside.
    GFD553808Courtesy of FORD MOTOR COMPANY
  19. .Remove the pin-type retainer and position the cooler tubes from the oil pan.
    GFD553809Courtesy of FORD MOTOR COMPANY
  20. Remove the nuts, bolts and the crossmember.
    GFD553811Courtesy of FORD MOTOR COMPANY
  21. Remove and discard the nuts, allow the sway bar to swing downward.
    GFD553812Courtesy of FORD MOTOR COMPANY

    4x4

  22. Using a holding device, hold the steering wheel in the straight-ahead position.
    GFD552282Courtesy of FORD MOTOR COMPANY
    1. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

      Remove and discard the steering column shaft bolt.

    2. Separate the steering column shaft U-joint from the steering gear.
    GFD552538Courtesy of FORD MOTOR COMPANY
  23. Remove the steering gear boot.
    GFD552539Courtesy of FORD MOTOR COMPANY
  24. Using an adjustable stand, support the front axle. Use the General Equipment: Vehicle/Axle Stands
    GFD552540Courtesy of FORD MOTOR COMPANY
  25. Remove and discard the lower front axle carrier mounting bushing bolt.
    GFD552603Courtesy of FORD MOTOR COMPANY
  26. Remove and discard the axle shaft housing carrier bushing nut and the bolt.
    GFD552542Courtesy of FORD MOTOR COMPANY
  27. NOTE: After loosening the bolt, it may be necessary to reposition the axle assembly to prevent interference with the steering components when removing the bolt.

    Remove and discard the upper front axle carrier mounting bushing nut and the bolt.

    GFD552543Courtesy of FORD MOTOR COMPANY
  28. Using an adjustable stand, lower the axle to allow clearance for the oil pan to be removed. Use the General Equipment: Vehicle/Axle Stands
    GFD552544Courtesy of FORD MOTOR COMPANY

    4x2/4x4

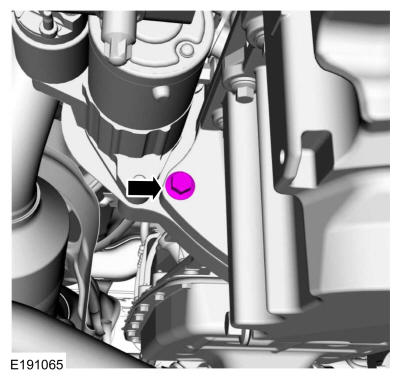

  29. Remove the oil pan bolt.
    GFD553849Courtesy of FORD MOTOR COMPANY
  30. Remove the oil pan bolts.
    GFD553815Courtesy of FORD MOTOR COMPANY
  31. NOTE: The generator wiring harness retainer is being removed for clearance to install the oil pan.

    Detach the generator wiring harness retainer from the engine block.

    GFD553124Courtesy of FORD MOTOR COMPANY

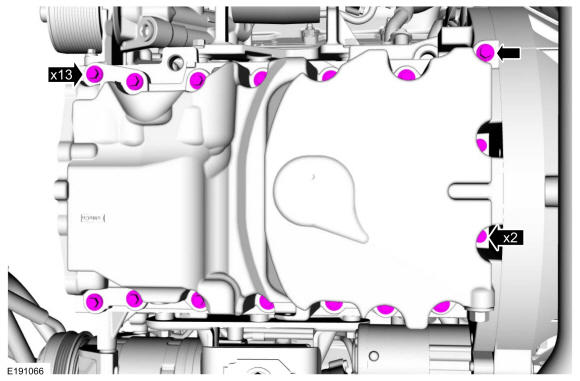

  32. Remove the oil pan bolts.
    GFD553850Courtesy of FORD MOTOR COMPANY

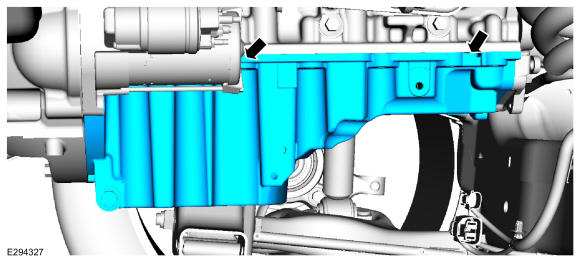

  33. Using a pry tool on the pry pads shown, remove the oil pan.
    GFD553851Courtesy of FORD MOTOR COMPANY
  34. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD553184Courtesy of FORD MOTOR COMPANY
  35. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD553185Courtesy of FORD MOTOR COMPANY
  36. Remove the bolts and oil pump screen and pickup tube.
    GFD553216Courtesy of FORD MOTOR COMPANY

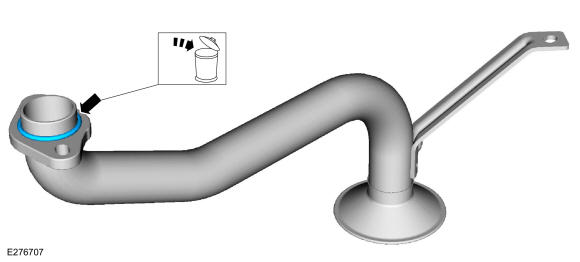

  37. Remove and discard the oil pump screen and pickup tube O-ring seal.
    GFD553852Courtesy of FORD MOTOR COMPANY

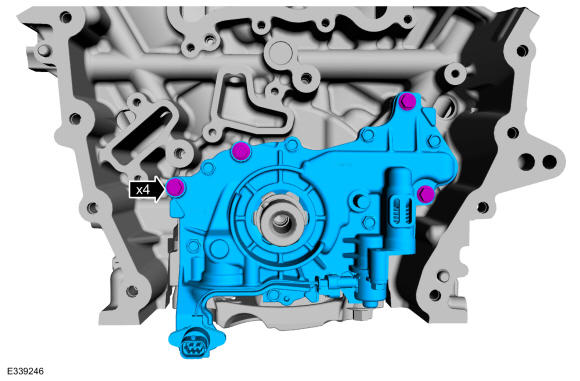

  38. Remove the bolts and oil pump.
GFD553853Courtesy of FORD MOTOR COMPANY
