Oil Pump: Installation

4x2/4x4

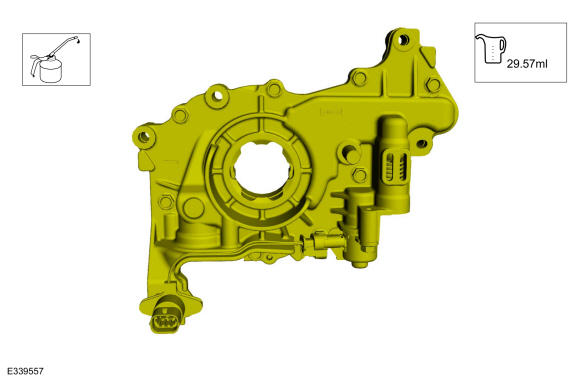

1. Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.

   Courtesy of FORD MOTOR COMPANY

2. Install the oil pump and the bolts.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

3. Install a new oil pump screen and pickup tube O-ring seal.

   Courtesy of FORD MOTOR COMPANY

4. Install the oil pump screen and pickup tube and the bolts.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

5. NOTE: The oil pan and the specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

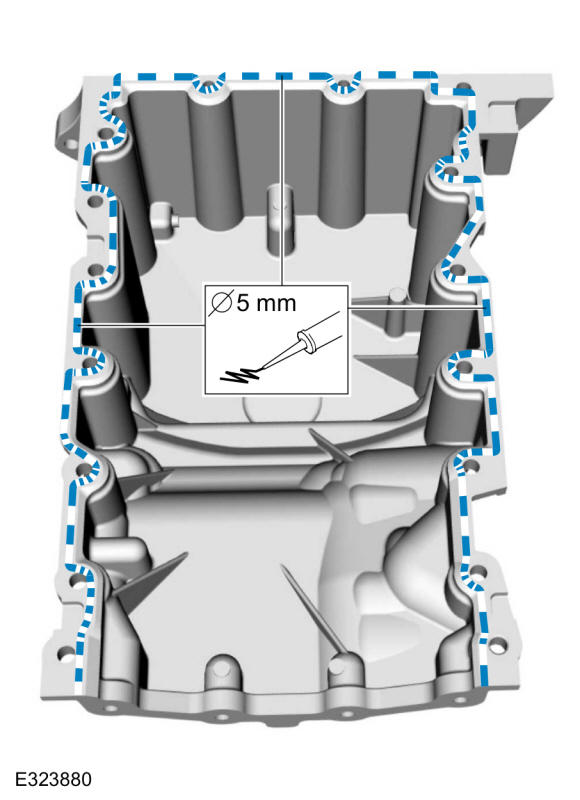

   Apply a 5 mm (0.20 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

   Material

   : Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

   Courtesy of FORD MOTOR COMPANY

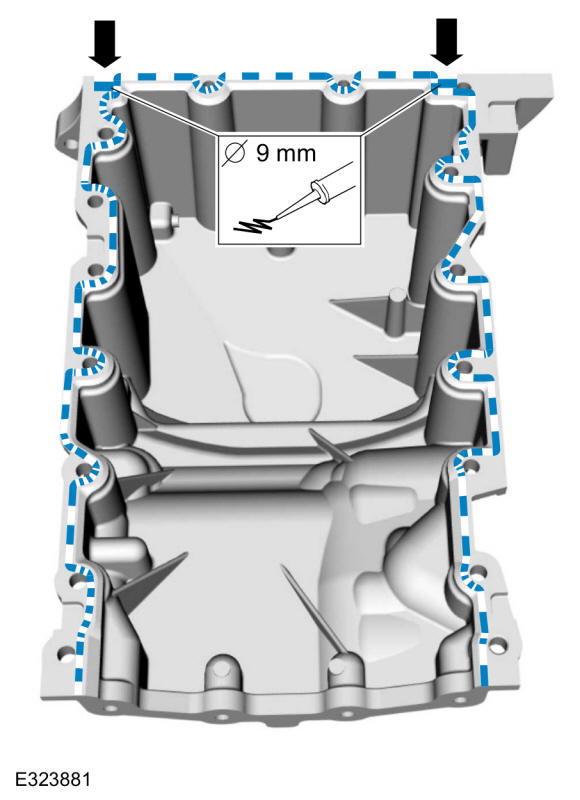

6. Apply a 9 mm (0.35 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.

   Material

   : Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

   Courtesy of FORD MOTOR COMPANY

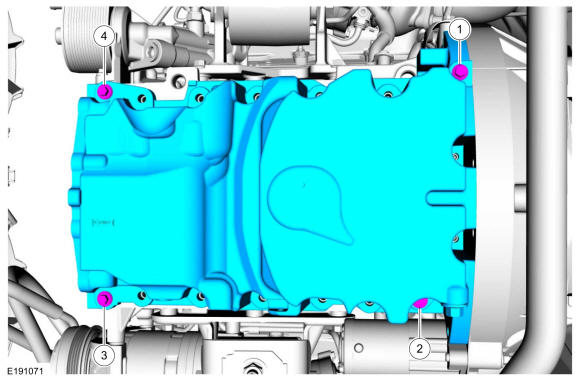

7. NOTE: The oil pan and the specified bolts must be installed within 4 minutes of the start of sealant application.
   NOTE: Keep the oil pan as close as possible to the transmission while installing, then slide forward towards the engine front cover to prevent wiping off of the sealant.

   Install the bolts finger tight.

   Courtesy of FORD MOTOR COMPANY

8. NOTE: Do not torque at this time.

   Install the bolts finger tight.

   Courtesy of FORD MOTOR COMPANY

9. NOTE: Do not torque at this time.

   Install the bolt finger tight.

   Courtesy of FORD MOTOR COMPANY

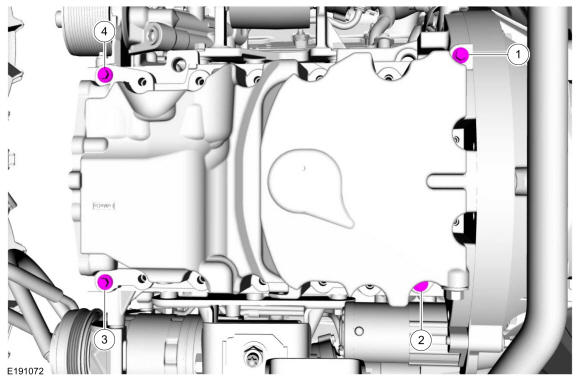

10. Tighten the oil pan bolts in sequence.

    Torque: 27 lb.in (3 Nm)

    Courtesy of FORD MOTOR COMPANY

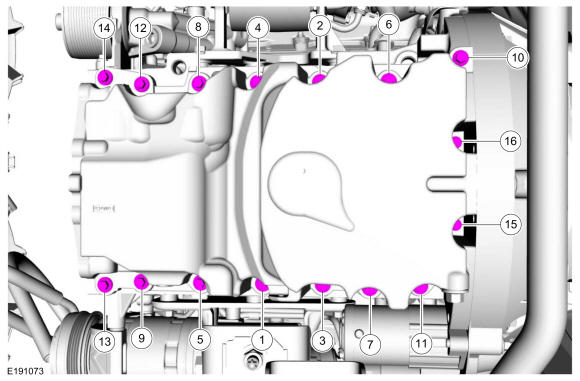

11. Install the remaining oil pan bolts and tighten in sequence.

    Torque: Stage 1: Tighten bolts 1-9 and 11-14 to : 177 lb.in (20 Nm); Stage 2: Tighten bolt 1-9 and 11-14 additional : 45°; Stage 3: Tighten bolt 10 to : 177 lb.in (20 Nm); Stage 4: Tighten bolt 10 an additional : 45°; Stage 5: Tighten bolts 15 and 16 to : 89 lb.in (10 Nm); Stage 6: Tighten bolts 15 and 16 an additional : 90°

    Courtesy of FORD MOTOR COMPANY

12. Tighten the oil pan bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

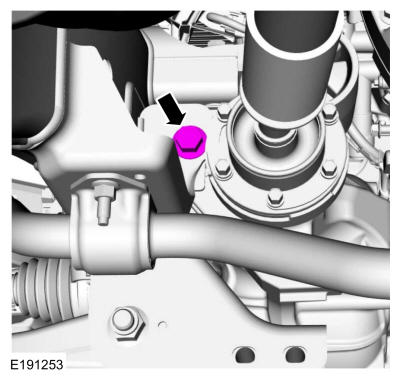

13. Tighten the oil pan bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

14. Attach the generator wiring harness retainer to the engine block.

    Courtesy of FORD MOTOR COMPANY

    4x4

15. NOTE: Use care when positioning the front axle housing or the vacuum lines to the axle solenoid may become disconnected or damaged.

    Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands

    Courtesy of FORD MOTOR COMPANY

16. NOTE: It may be necessary to reposition the axle assembly to prevent interference with the steering components when installing the bolt.

    Install the new upper front axle carrier mounting bushing nut and the bolt finger tight.

    Courtesy of FORD MOTOR COMPANY

17. Install the new axle shaft housing carrier bushing nut and the bolt finger tight.

    Courtesy of FORD MOTOR COMPANY

18. Install the new lower front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Tighten the axle shaft housing carrier bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

20. Tighten the upper front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

21. Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands

    Courtesy of FORD MOTOR COMPANY

22. Install the steering gear boot.

    Courtesy of FORD MOTOR COMPANY

23. 1. Position back the steering column shaft U-joint to the steering gear.
    2. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

       Install a new steering column shaft bolt.

       Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

24. Remove the holding device from the steering wheel.

    Courtesy of FORD MOTOR COMPANY

    4x2/4x4

25. Position the cooler tubes to the oil pan and install the pin-type retainer.

    Courtesy of FORD MOTOR COMPANY

26. Position the cooler tubes back and install the nut.

    Torque: 124 lb.in (14 Nm)

    Courtesy of FORD MOTOR COMPANY

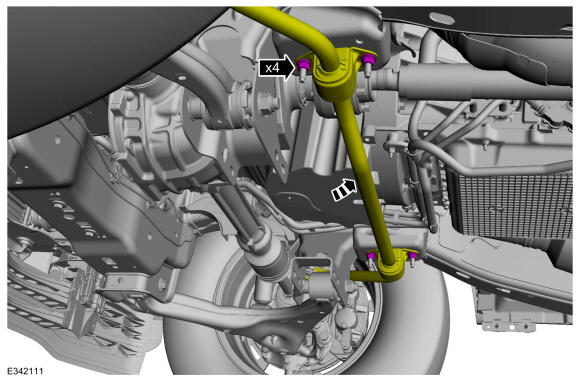

27. Position the sway bar back and install the nuts.

    Torque: 41 lb.ft (55 Nm)

    Courtesy of FORD MOTOR COMPANY

28. Position the crossmember, install the nuts and bolts.

    Torque: 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

29. Install the timing chain sprocket.

    Courtesy of FORD MOTOR COMPANY

30. NOTE: The crankshaft sprocket is reversible with a timing mark on each face. For installation of each timing chain, utilize the timing mark on the front face of the crankshaft sprocket for chain alignment.
    1. Install the LH timing chain with the single colored links aligned with the timing marks on the VCT units.
    2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

31. Install the LH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

32. Position the tensioner in a soft-jawed vise.

    Courtesy of FORD MOTOR COMPANY

33. NOTE: Use of a commercially available tools with a curved radius in the range of 10mm - 15mm is suggested for use in resetting the ratchet clip. Examples are a 8mm closed end wrench, 12x12mm piece of bar stock, T40 to T50 Torx screwdriver or 3/8 wobble style socket extender.

    Using a commercially available wrench, push down on the ratchet clip so the ratchet clip pushes outward.

    Courtesy of FORD MOTOR COMPANY

34. 1. Using the soft-jawed vise, compress the piston to the reset position.
    2. Install a locking pin in the 2 holes of the tensioner body to hold the piston in place.
    3. Remove the commercially available tool and the tensioner.

    Courtesy of FORD MOTOR COMPANY

35. Position the LH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm and install the fasteners.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

36. Install the LH timing chain guide and bolts.

    Torque: Stage 1: 89 lb.in (10 Nm); Stage 2: 30°

    Courtesy of FORD MOTOR COMPANY

37. Remove the tensioner pins.

    Courtesy of FORD MOTOR COMPANY

38. Remove Special Service Tool: 303-1655 Tool, Camshaft Holding.

    Courtesy of FORD MOTOR COMPANY

39. Install Special Service Tool: 303-1655 Tool, Camshaft Holding.

    Courtesy of FORD MOTOR COMPANY

40. NOTE: The crankshaft sprocket is reversible with a timing mark on each face. For installation of each timing chain, utilize the timing mark on the front face of the crankshaft sprocket for chain alignment.
    1. Install the RH timing chain with the single colored links aligned with the timing marks on the VCT units.
    2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

41. Install the RH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

42. Position the tensioner in a soft-jawed vise.

    Courtesy of FORD MOTOR COMPANY

43. NOTE: Use of a commercially available tools with a curved radius in the range of 10mm - 15mm is suggested for use in resetting the ratchet clip. Examples are a 8mm closed end wrench, 12x12mm piece of bar stock, T40 to T50 Torx screwdriver or 3/8 wobble style socket extender.

    Using a commercially available wrench, push down on the ratchet clip so the ratchet clip pushes outward.

    Courtesy of FORD MOTOR COMPANY

44. 1. Using the soft-jawed vise, compress the piston to the reset position.
    2. Install a locking pin in the 2 holes of the tensioner body to hold the piston in place.
    3. Remove the commercially available tool and the tensioner.

    Courtesy of FORD MOTOR COMPANY

45. Position the RH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm and install the fasteners.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

46. Install the RH timing chain guide and bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

47. Remove the tensioner pins.

    Courtesy of FORD MOTOR COMPANY

48. Remove Special Service Tool: 303-1655 Tool, Camshaft Holding.

    Courtesy of FORD MOTOR COMPANY

49. Install the engine front cover. Refer to: Engine Front Cover .
