Oil Cooler: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the engine appearance cover retainers.
- Release the engine appearance cover from the rear and remove the engine appearance cover.
Courtesy of FORD MOTOR COMPANY
Remove the air cleaner outlet pipe LH. Refer to: Air Cleaner Outlet Pipe LH .
Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment

Courtesy of FORD MOTOR COMPANY
Disconnect the block heater cord.

Courtesy of FORD MOTOR COMPANY

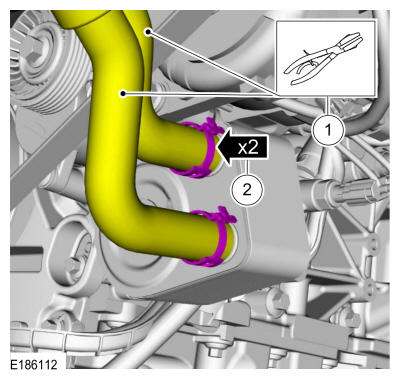

1. Using hose locking pliers, clamp the oil cooler coolant hoses. Use the General Equipment: Locking Pliers
2. Using the hose clamp remover, remove the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY
NOTE: If metal or foreign material is present in the oil cooler, mechanical concerns exist. To diagnose the mechanical concerns refer to ENGINE SYSTEM - GENERAL INFORMATION .

Remove the retainer and the oil cooler.

Courtesy of FORD MOTOR COMPANY
