Oil Cooler: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-

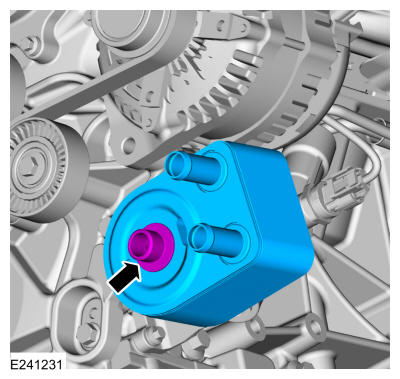

NOTE: Make sure the oil cooler-to-oil filter adapter is aligned.
Install the oil cooler and the retainer.
Torque: Stage 1: 43 lb.ft (58 Nm); Stage 2: 9°
-

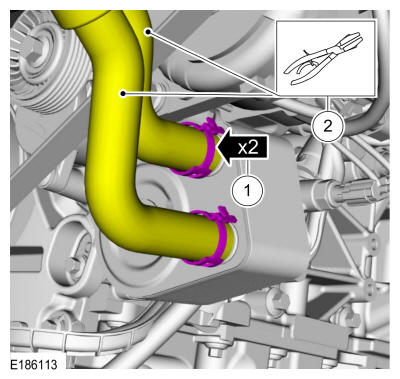

- Using the hose clamp installer, install the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
- Remove the hose locking pliers. Use the General Equipment: Locking Pliers

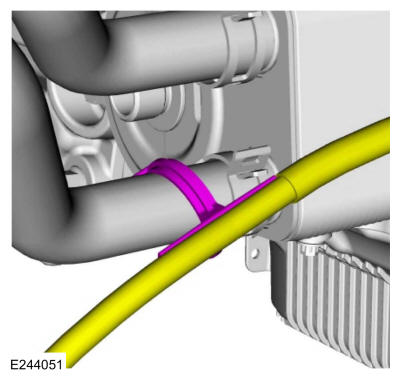

- Connect the block heater cord.

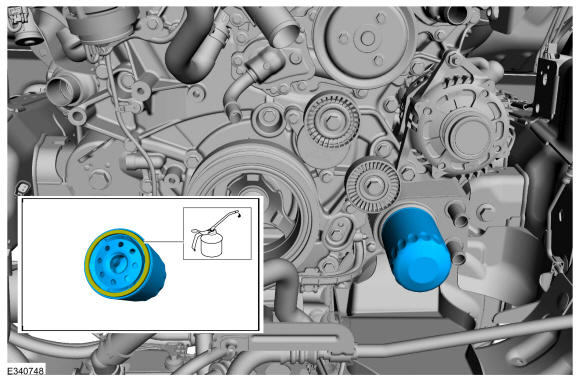

- Lubricate the oil filter seal with clean oil and install the new oil filter.
Torque: Stage 1: 44 lb.in (5 Nm); Stage 2: 180°
- Install the air cleaner outlet pipe LH. Refer to: Air Cleaner Outlet Pipe LH .
-

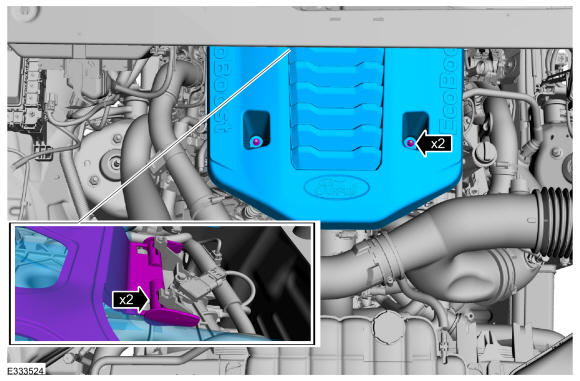

- Insert the engine appearance cover into the rear support.
- Install the engine appearance cover retainers.
Torque: 44 lb.in (5 Nm)
- Inspect and adjust the coolant level in the degas bottle. Refer to: Specifications .

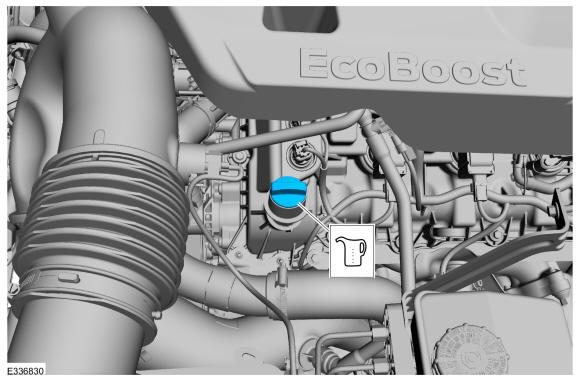

- Fill the engine with clean engine oil. Refer to: Specifications .
