Hydraulic Lash Adjuster: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

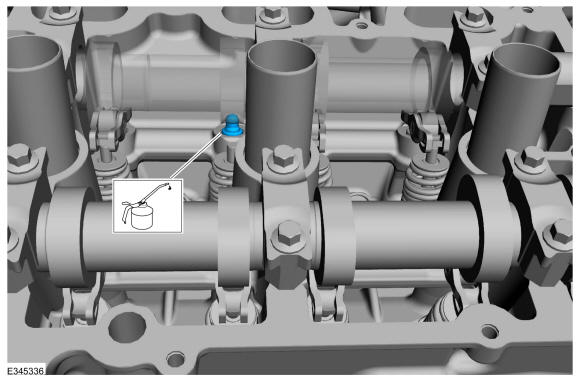

  1. Lubricate the hydraulic lash adjuster with clean engine oil and install.
    GFD553783Courtesy of FORD MOTOR COMPANY
  2. Install the roller finger follower. Refer to: Rocker Arm .
