Removal And Installation: Flexplate: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. Refer to: Transmission - 3.5L EcoBoost (BM), Vehicles With: Transmission Fluid Heat Exchanger .

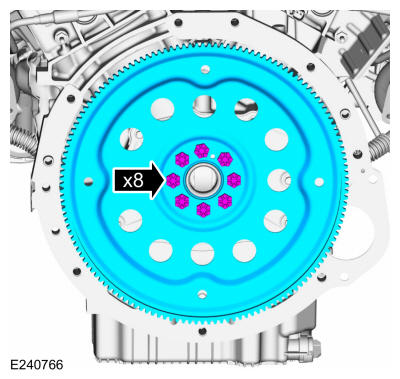

  2. Remove the bolts and the flexplate.
GFD553776Courtesy of FORD MOTOR COMPANY
