Removal And Installation: Flexplate: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: The offset hole may be used in four locations.

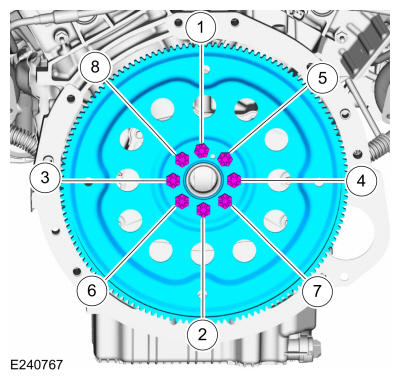

Install the flexplate and the bolts. Tighten in sequence shown.
Torque: 59 lb.ft (80 Nm)
- Install the transmission. Refer to: Transmission - 3.5L EcoBoost (BM), Vehicles With: Transmission Fluid Heat Exchanger .
- After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
- Road test the vehicle.
