Exhaust Manifold RH: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

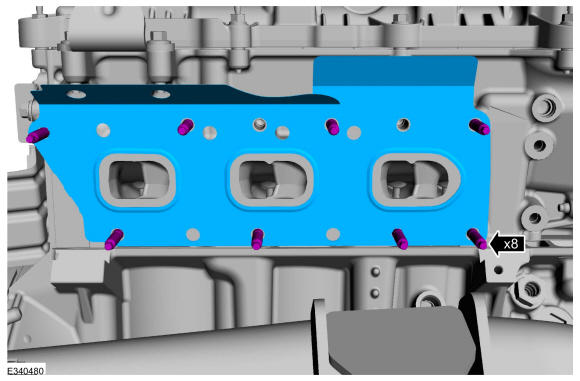

NOTE: Install short end of stud into cylinder head assembly.
- Loosely install the new studs into the RH cylinder head.
- Tighten the studs.
  Torque: 115 lb.in (13 Nm)
- Install the new exhaust manifold gasket.
Courtesy of FORD MOTOR COMPANY

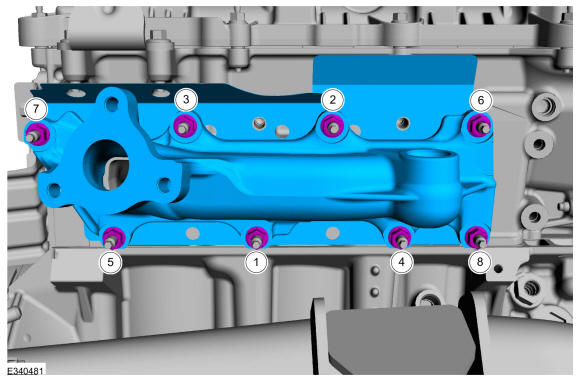

Install the RH exhaust manifold and the new nuts. Tighten the nuts in sequence shown in 2 stages.
Torque: Stage 1: 142 lb.in (16 Nm); Stage 2: 16 lb.ft (22 Nm)

Fig 1: RH Exhaust Manifold Tightening Sequence
Courtesy of FORD MOTOR COMPANY

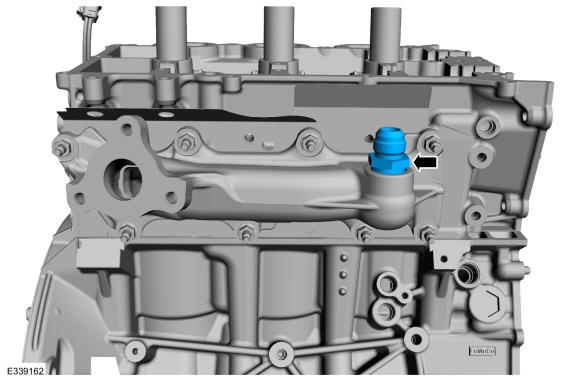

NOTE: The new EGR to exhaust manifold connector comes lubricated, no lubricant needs to be applied.

Install the new EGR to exhaust manifold connector.

Torque: 125 lb.ft (170 Nm)

Courtesy of FORD MOTOR COMPANY
Install the RH turbocharger. Refer to: Turbocharger RH .

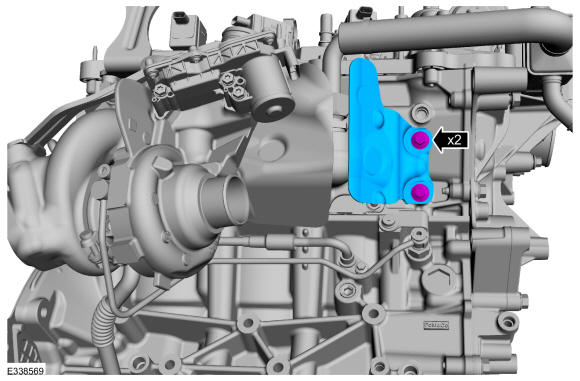

Engine equipped with dual generator. Install the exhaust manifold heat shield and bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
