Exhaust Manifold LH: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

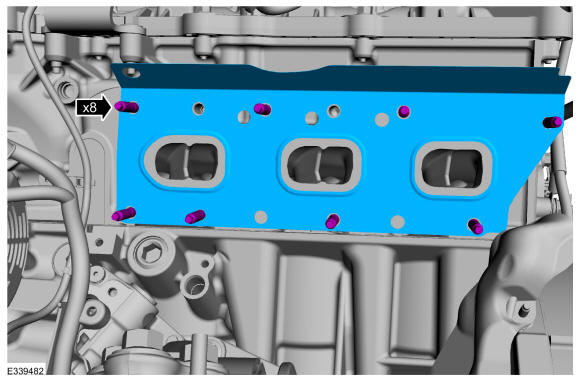

- Hand start the new exhaust manifold studs.
  Torque: 115 lb.in (13 Nm)
- Tighten the new exhaust manifold studs.
  Torque: 115 lb.in (13 Nm)
- Install a new gasket.
Courtesy of FORD MOTOR COMPANY

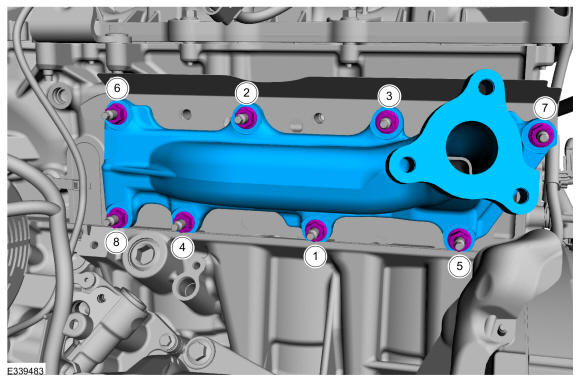

Install the exhaust manifold and new nuts in the sequence shown.
Torque: Stage 1: 142 lb.in (16 Nm); Stage 2: 16 lb.ft (22 Nm)

Fig 1: LH Exhaust Manifold Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the LH turbocharger. Refer to: Turbocharger LH .
