Engine Mount RH: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Clean the engine mount-to-cylinder block and engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

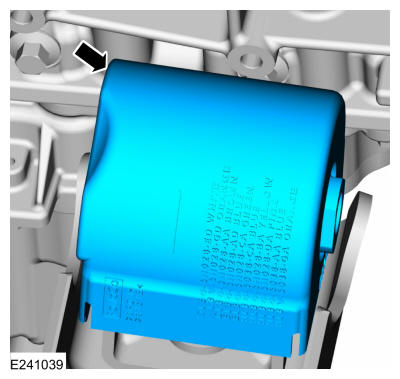

Position the RH engine mount into the vehicle.

Courtesy of FORD MOTOR COMPANY
Position the RH engine mount-to-cylinder block bracket and install the new bolts in the sequence shown.
Torque: 55 lb.ft (75 Nm)

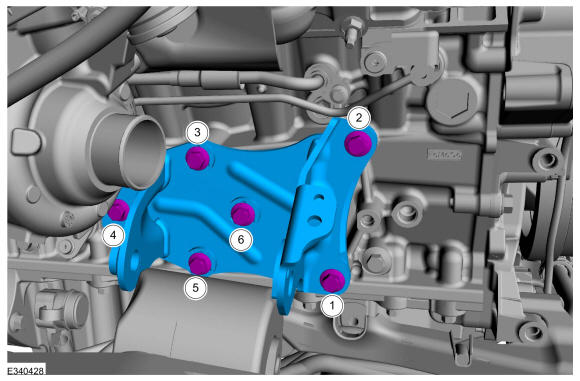

Fig 1: RH Engine Mount Bracket Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.

NOTE: Apply threadlock to the stud threads prior to installation.

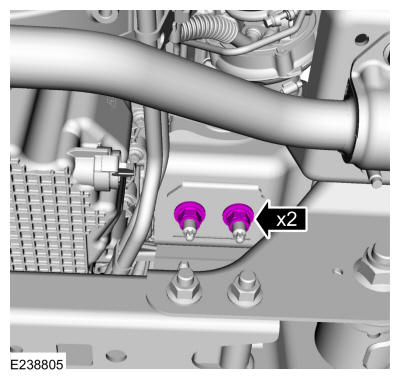

Install the engine mount studs.

Material

: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when installing the RH engine mount nuts or damage to the engine mount can occur.

Install the new RH engine mount nuts.

Torque: 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY
- Using the adjustable stand, lower the engine to the installed position. Use the General Equipment: Vehicle/Axle Stands
- Remove the stand.
Courtesy of FORD MOTOR COMPANY
Position the stabilizer bar and install the new nuts.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

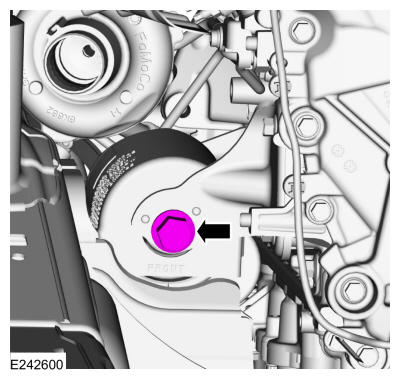

Install the new LH engine mount through bolt.

Torque: 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

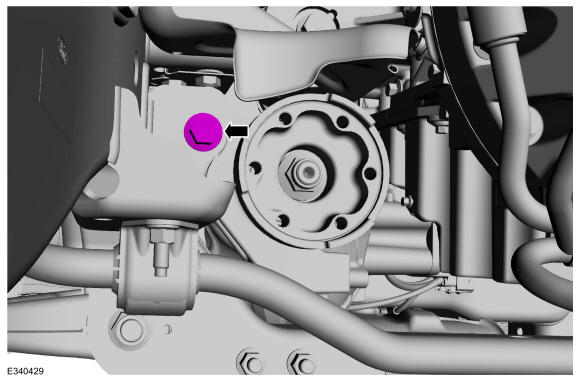

Install the new RH engine mount through bolt.

Torque: 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY

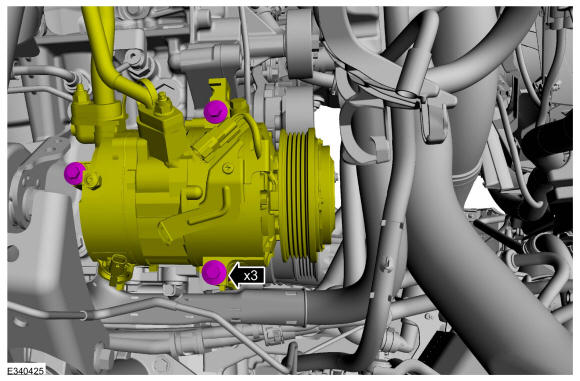

Position back the A/C compressor and install the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

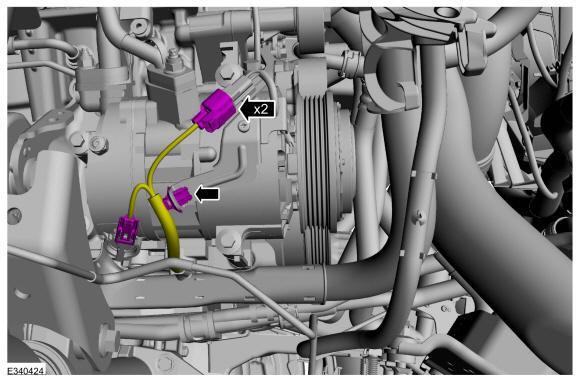

Connect the A/C compressor electrical connectors and wire retainer.

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Engines equipped with dual generator. Install the secondary generator. Refer to: Generator - 3.5L EcoBoost (BM) .
2. Engine equipped with single generator. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
3. Install the starter motor. Refer to: Starter Motor .
NOTE: Only use hand tools when loosening or tightening the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

Remove and discard the transmission mount-to-crossmember nuts. Install new transmission mount-to-crossmember nuts.

Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

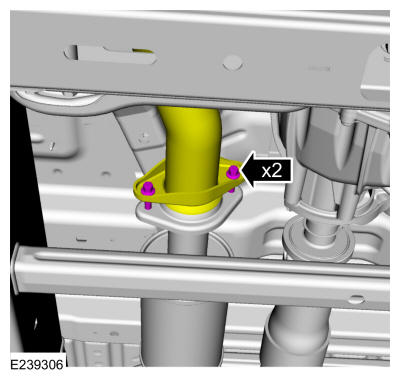

Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

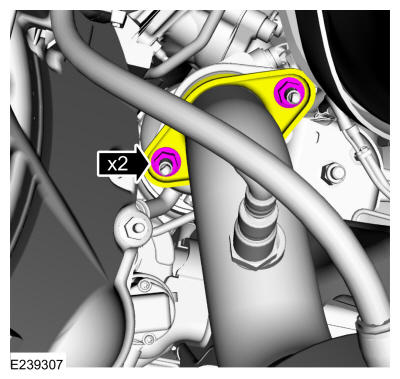

Install the new RH catalytic converter-to-turbocharger nuts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

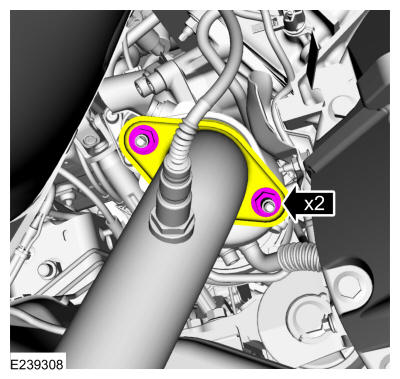

Install the new LH catalytic converter-to-turbocharger nuts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped, install the front driveshaft. Refer to: Front Driveshaft .
If equipped, install the skid plate and the bolts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
- If equipped, install the underbody shield and the bolts.
  Torque: 30 lb.ft (40 Nm)
- Install the pin-type retainers.
Courtesy of FORD MOTOR COMPANY
- If equipped, install the transmission housing cover and attach the retainer.
- Install the bolts.
  Torque: 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY

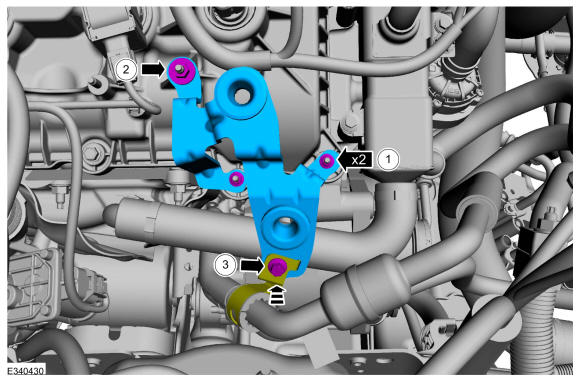

- Install the CAC support and nuts.
  Torque: 53 lb.in (6 Nm)
- Install the washer and nut.
  Torque: 71 lb.in (8 Nm)
- Position the A/C bracket to the CAC support and install the bolt.
  Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
Install the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
Start and check the exhaust system for leaks.
