Engine Front Cover: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. GFD553708Courtesy of FORD MOTOR COMPANY

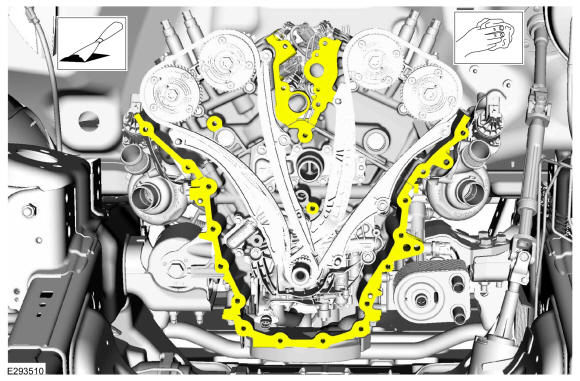

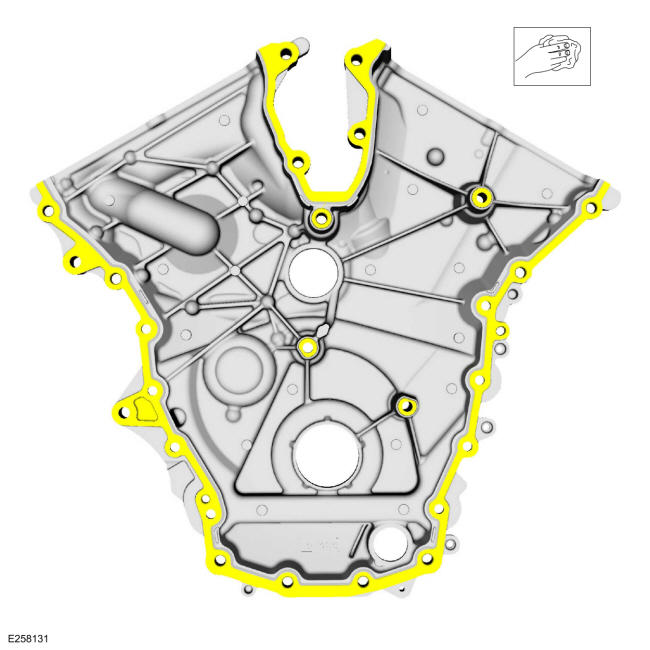

  2. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD553709Courtesy of FORD MOTOR COMPANY

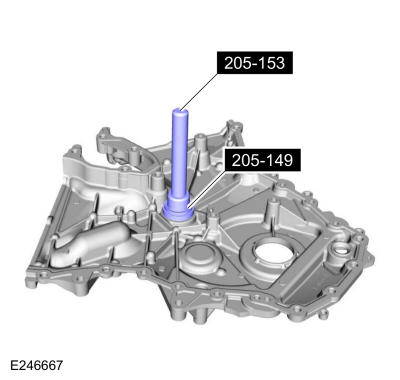

  3. Using the special tools, install the new engine front cover to coolant pipe seal. Use Special Service Tool: 205-149 (T80T-4000-R) Installer, Spindle Bearing., 205-153 (T80T-4000-W) Handle.
    GFD553710Courtesy of FORD MOTOR COMPANY

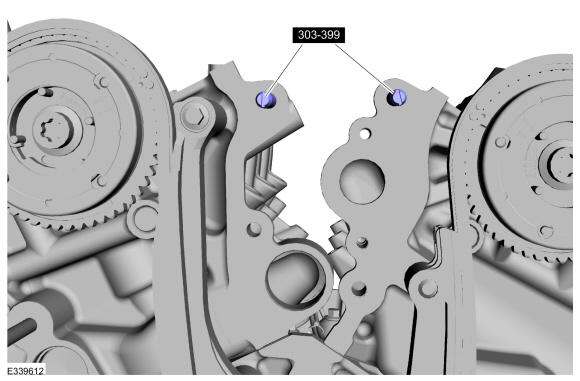

  4. Install Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.
    GFD553711Courtesy of FORD MOTOR COMPANY
    • NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
      NOTE: The engine front cover and the 6 bolts must be installed within 4 minutes of the initial sealant application. The remainder of the engine front cover bolts must be installed and tightened within 35 minutes of the initial sealant application. If the time limits are exceeded, the sealant must be removed, the sealing area cleaned and sealant reapplied. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

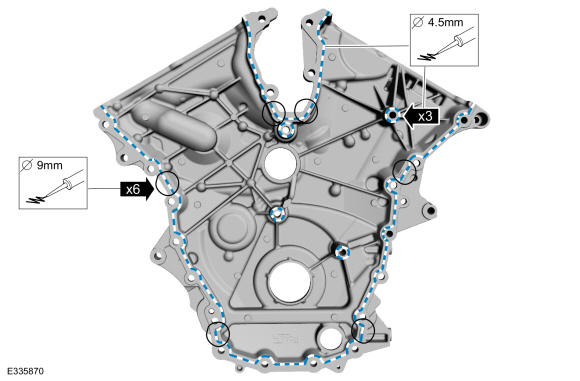

      Apply a 4.5 mm (0.18 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover sealing surfaces including the inner bolt bosses.

      Material

      : Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    • Apply a 9.0 mm (0.35 in) bead of Motorcraft® High Performance Engine RTV Silicone to the oil pan-to-cylinder block joint and the cylinder head-to-cylinder block joint areas of the engine front cover in places as indicated.

      Material

      : Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD553712Courtesy of FORD MOTOR COMPANY

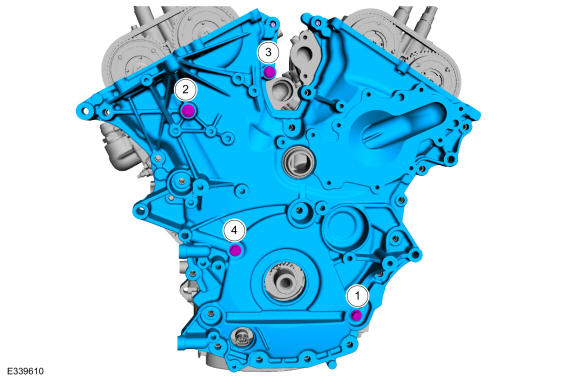

  6. NOTE: Make sure the 2 locating dowel pins are seated correctly in the cylinder block.

    Install the engine front cover and the bolts.

    Torque: 27 lb.in (3 Nm)

    GFD553713Courtesy of FORD MOTOR COMPANY

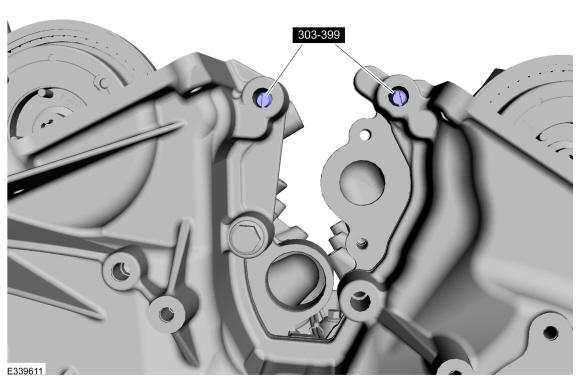

  7. Remove Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.
    GFD553714Courtesy of FORD MOTOR COMPANY

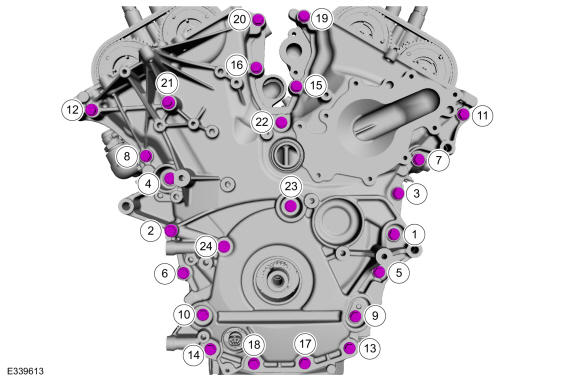

  8. Install the engine front cover bolts. Tighten in the sequence shown in 2 stages.

    Torque: Stage 1: Tighten bolts 1 thru 24 to: 177 lb.in (20 Nm); Stage 2: Tighten bolt 1 thru 24 an additional: 45°

    Fig 1: Engine Front Cover Tightening Sequence
    GFD553715Courtesy of FORD MOTOR COMPANY

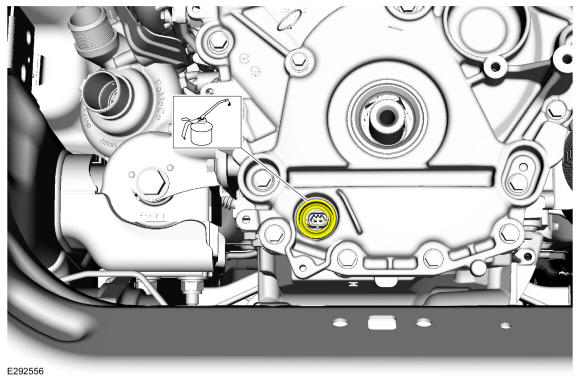

  9. With clean oil, lubricate and position the new oil pump electrical connector seal. Refer to: Specifications .
    GFD553716Courtesy of FORD MOTOR COMPANY

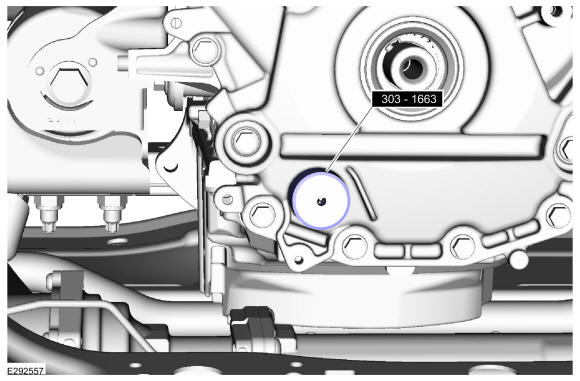

  10. NOTE: If the oil pump electrical connector seal is not properly installed, it may result in oil leakage.

    Using the special tool, install the oil pump electrical connector seal. Install Special Service Tool: 303-1663 Installer, VDOP Seal.

    GFD553717Courtesy of FORD MOTOR COMPANY

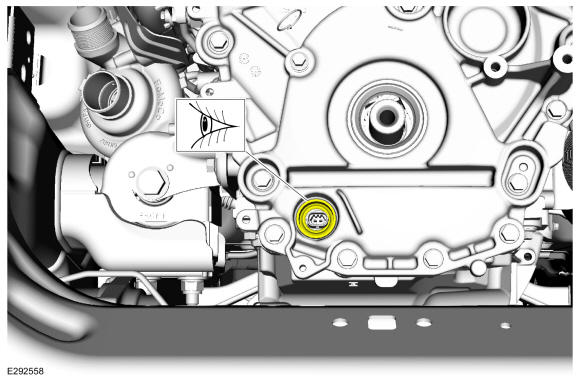

  11. NOTE: The front surface of the oil pump electrical connector seal will be level with the engine front cover recess.

    Inspect the oil pump electrical connector seal for proper installation.

    GFD553718Courtesy of FORD MOTOR COMPANY
  12. Install the transmission cooler bracket stud.
    GFD553703Courtesy of FORD MOTOR COMPANY
  13. Position back the engine wiring harness.
    GFD553719Courtesy of FORD MOTOR COMPANY

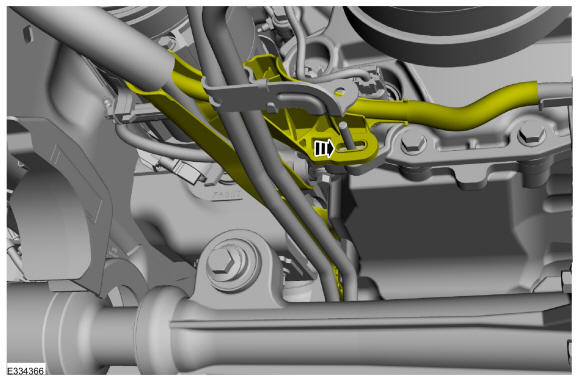

  14. Position back the engine wiring harness. Position back the transmission cooler tube bracket and install the nut.

    Torque: 106 lb.in (12 Nm)

    GFD553701Courtesy of FORD MOTOR COMPANY
  15. Connect the generator wiring to the engine front cover.
    GFD553700Courtesy of FORD MOTOR COMPANY
  16. Install the pin-type retainers and connect the oil pump electrical connector.
    GFD553699Courtesy of FORD MOTOR COMPANY
  17. Install the cabin heater coolant pump and bolts. Connect the electrical connector.

    Torque: 89 lb.in (10 Nm)

    GFD553698Courtesy of FORD MOTOR COMPANY
    • Install the accessory drive belt tensioner and bolts.

      Torque: 18 lb.ft (25 Nm)

    • Install the accessory drive belt idler pulley and bolt.

      Torque: 18 lb.ft (25 Nm)

    GFD553696Courtesy of FORD MOTOR COMPANY
    • Engine equipped with dual generator. Install the accessory drive belt tensioner and bolts.

      Torque: 18 lb.ft (25 Nm)

    • Engine equipped with dual generator. Install the accessory drive belt idler pulley and bolt.

      Torque: 18 lb.ft (25 Nm)

    GFD553697Courtesy of FORD MOTOR COMPANY
  20. Engine equipped with dual generator. Install the generator stud.

    Torque: 71 lb.in (8 Nm)

    GFD553695Courtesy of FORD MOTOR COMPANY

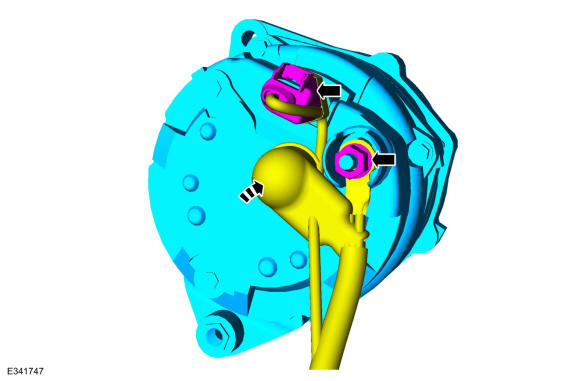

  21. NOTE: When installing the B+ terminal nut to the generator, finger-start the nut before tightening or component damage may occur.

    Engine equipped with dual generator. Connect the generator electrical connector. Install the nut and position the B+ wire and cover back.

    Torque: 150 lb.in (17 Nm)

    GFD553720Courtesy of FORD MOTOR COMPANY
  22. Engine equipped with dual generator. Position back the generator. Install the nut and the bolt.

    Torque: 35 lb.ft (47 Nm)

    GFD553693Courtesy of FORD MOTOR COMPANY
  23. Install the generator stud.

    Torque: 71 lb.in (8 Nm)

    GFD553692Courtesy of FORD MOTOR COMPANY
  24. Position back the generator. Install the nut and the bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD553691Courtesy of FORD MOTOR COMPANY

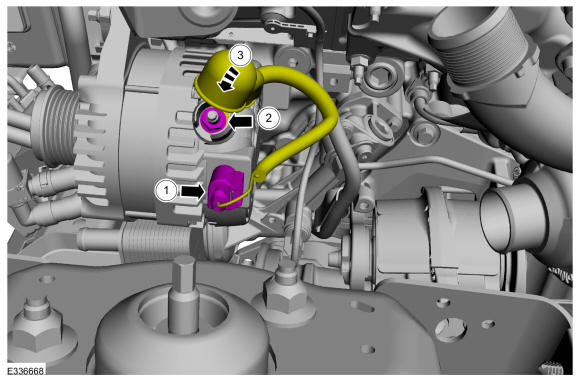

  25. NOTE: When installing the B+ terminal nut to the generator, finger-start the nut before tightening or component damage may occur.

    • Connect the electrical connector.

    • Install the generator nut.

      Torque: 150 lb.in (17 Nm)

    • Position back the boot.

    GFD553721Courtesy of FORD MOTOR COMPANY
  26. Attach the starter motor wiring harness and retainer to the oil pan.
    GFD553689Courtesy of FORD MOTOR COMPANY
  27. Install the following items:

    1. Install the crankshaft front seal. Refer to: Crankshaft Front Seal .
    2. Install the coolant pump. Refer to: Coolant Pump .
    3. Install the thermostat housing. Refer to: Thermostat Housing .
    4. Install the RH valve cover. Refer to: Valve Cover RH .
    5. Install the LH valve cover. Refer to: Valve Cover LH .
    6. Install the charge air cooler outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .

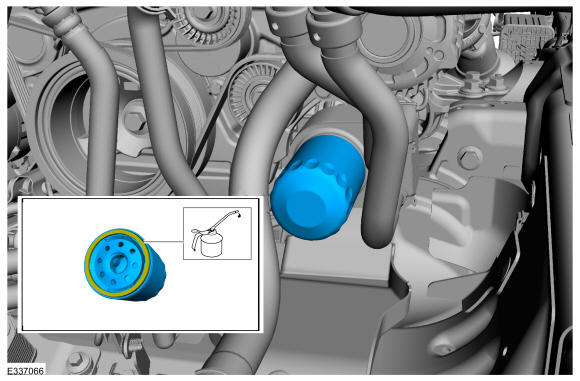

  28. Lubricate the oil filter seal with clean oil and install the new oil filter. Refer to: Specifications .

    Torque: Stage 1: 44 lb.in (5 Nm); Stage 2: 180°

    GFD553644Courtesy of FORD MOTOR COMPANY
  29. Install the undershields. Refer to: Engine Rear Undershield . Refer to: Engine Front Undershield .
    • Insert the engine appearance cover into the rear support.

    • Install the engine appearance cover retainers.

      Torque: 89 lb.in (10 Nm)

    GFD553687Courtesy of FORD MOTOR COMPANY

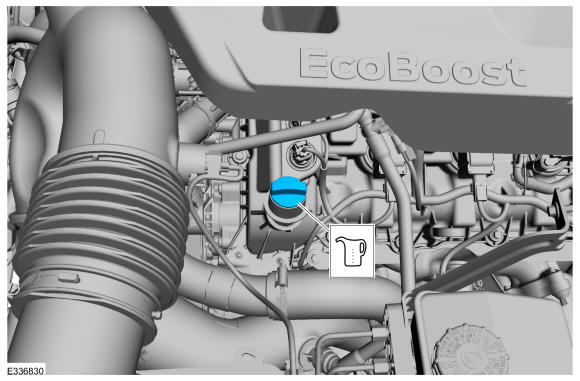

  31. Fill the engine with clean engine oil. Refer to: Specifications .
    GFD553645Courtesy of FORD MOTOR COMPANY
  32. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
  33. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
  34. Road test the vehicle.
