Crankshaft Front Seal: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.

3.5L V6 PowerBoost (CN)

Remove the accessory drive belt. Refer to: Accessory Drive Belt .
3.5L EcoBoost (BM)
Remove the accessory drive belt. Refer to: Accessory Drive Belt .
All vehicles
- Remove the crankshaft pulley bolt and washer.
- Discard the bolt.
Courtesy of FORD MOTOR COMPANY
Using a three leg puller, remove the crankshaft pulley. Use the General Equipment: Three Leg Puller

Courtesy of FORD MOTOR COMPANY

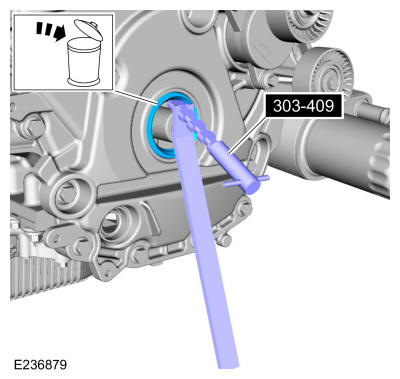

Using the special tool, remove and discard the crankshaft front seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.

Courtesy of FORD MOTOR COMPANY
