Engine Oil Draining and Filling
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION
Special Tool(s) / General Equipment
| Oil Drain Equipment |
|---|
Materials
| Name | Specification |
|---|---|
| Motorcraft® Metal Brake Parts CleanerPM-4-A, PM-4-B | - |
Activation
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- If equipped, remove the bolts and the transmission housing cover.
-
- If equipped, remove the bolts and the underbody shield.
- If equipped, remove the bolts and the skid plate.
- If equipped, remove the bolts and the skid plate.
- Remove the oil pan plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
Torque: 19 lb.ft (26 Nm)

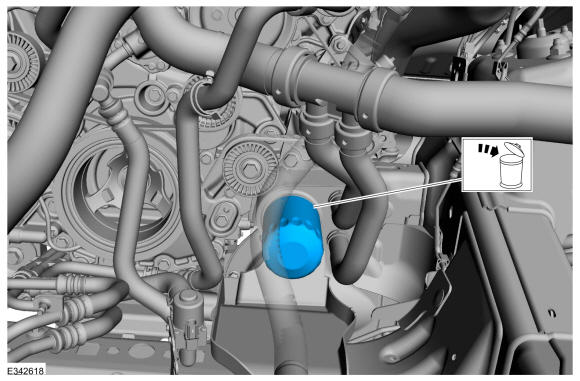

- Remove and discard the oil filter. Use the General Equipment: Oil Drain Equipment
-

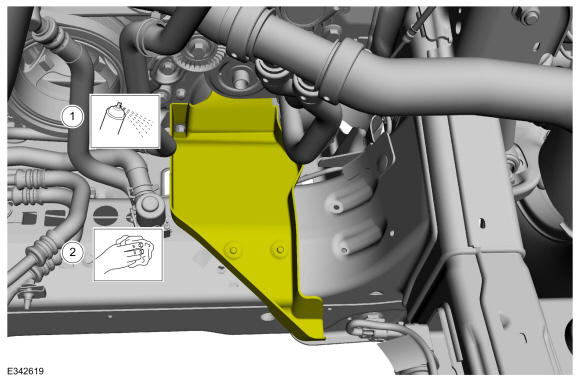

- Using brake cleaner, clean the drain trough. Use the General Equipment: Oil Drain Equipment
Material
: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
- Wipe the drain trough clean.
- Using brake cleaner, clean the drain trough. Use the General Equipment: Oil Drain Equipment
Filling
-
- Lubricate the oil filter seal with clean engine oil and install the new oil filter. Refer to: Specifications .
Torque: Stage 1: 44 lb.in (5 Nm); Stage 2: 180°
- Lubricate the oil filter seal with clean engine oil and install the new oil filter. Refer to: Specifications .
- If equipped, install the skid plate and the bolts.
Torque: 30 lb.ft (40 Nm)
-
- If equipped, remove the bolts and the skid plate.
Torque: 30 lb.ft (40 Nm)
- If equipped, install the underbody shield and bolts.
Torque: 30 lb.ft (40 Nm)
- If equipped, remove the bolts and the skid plate.
- If equipped, install the transmission housing cover and the bolts
Torque: 71 lb.in (8 Nm)
- Fill the engine with clean engine oil. Refer to: Specifications .
