High-Pressure Fuel Pump: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not loosen any fittings or plugs on the high-pressure fuel pump.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery negative cable. Refer to: Battery Disconnect and Connect .
- Disconnect the high-pressure fuel pump electrical connector.
- Remove the lower intake manifold. Refer to: Lower Intake Manifold .
- Detach the harness retainer.
-
NOTE: To release the fuel pressure in the high-pressure fuel tube, wrap the high-pressure fuel tube flare nuts with a shop towel to absorb any residual fuel pressure during the loosening of the high-pressure fuel tube flare nuts.

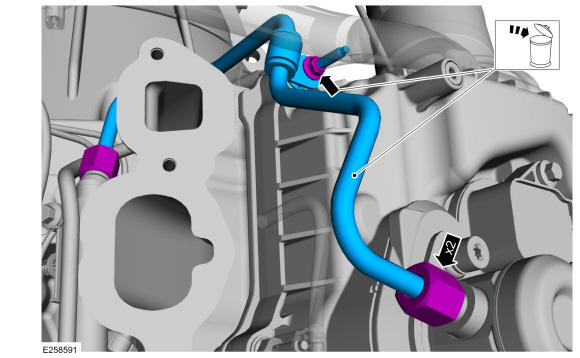

Remove and discard the high-pressure fuel tube retaining nut. Disconnect the high-pressure fuel tube flare nuts, then remove and discard the high-pressure fuel tube.
-
NOTE: Make note of the high-pressure fuel pump supply Oetiker® clamp end location for correct installation.

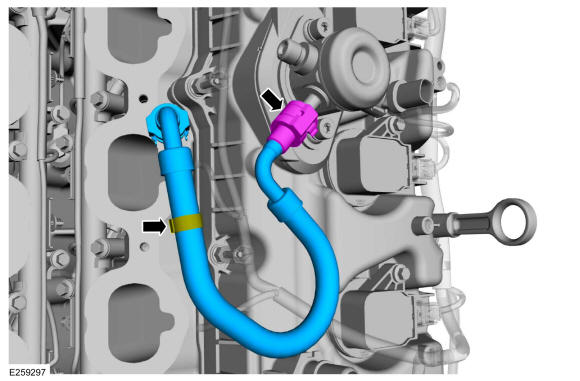

Disconnect the quick release coupling, then remove the high-pressure fuel pump fuel feed tube. Follow the directions for the quick release coupling type 10. Refer to: Quick Release Coupling .
-
NOTE: Alternately loosen the high-pressure fuel pump bolts one complete revolution at a time.

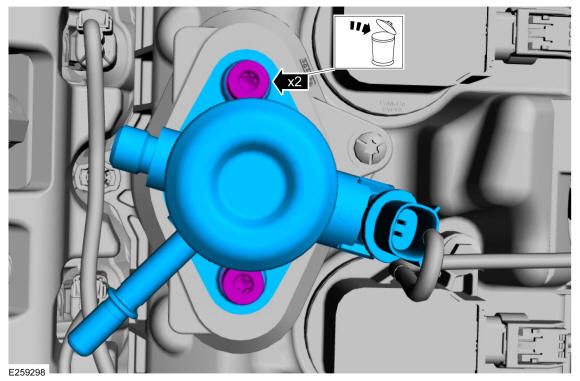

Remove and discard the high-pressure fuel pump bolts, then remove the high-pressure fuel pump.
- Remove and discard the high-pressure fuel pump O-ring seal.

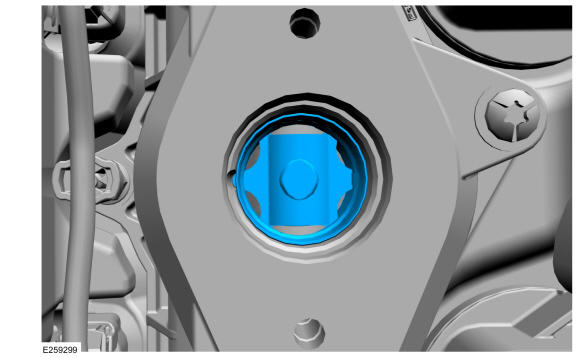

- Remove the high-pressure fuel pump roller tappet.
- Inspect the high-pressure fuel pump roller tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the high-pressure fuel pump roller tappet drive lobe. Install new components as needed.

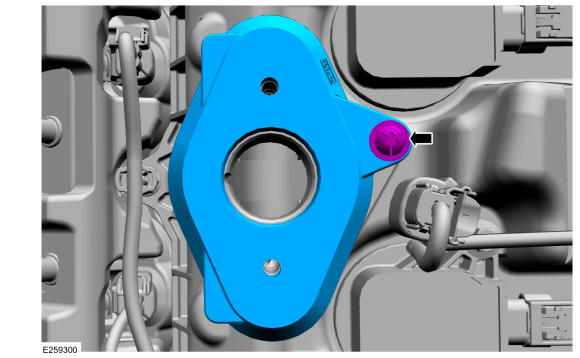

- Loosen the high-pressure fuel pump mounting plate bolt, then remove the mounting plate.

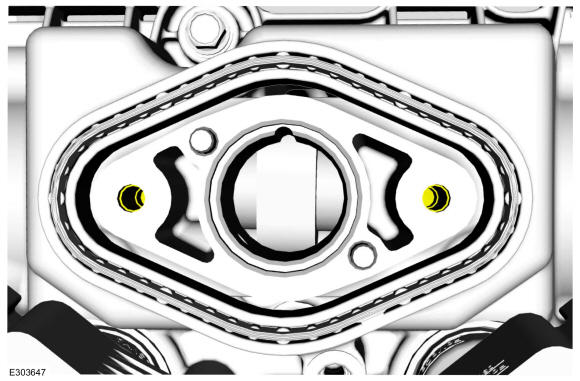

- Remove any dirt or foreign material from the high-pressure fuel pump bolt holes.
