Direct Injection Fuel Rail LH: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Do not lubricate the new lower Teflon® fuel injector seals.

    1. Install the Teflon® Seal Guide onto the fuel injector tip.

      Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.

    2. NOTE: Once the Teflon® seal is installed on the Teflon® Seal Guide, it should immediately be installed onto the fuel injector to avoid excessive expansion of the Teflon® seal.
      NOTE: Make sure that new lower fuel injector Teflon® seals are installed.

      Install the new Teflon® seals onto the Teflon® Seal Guide, using the Pusher Tool, slide the Teflon® seals along the Teflon® Seal Guide.

    3. Using the Pusher Tool, slide the Teflon® seals off of the Teflon® Seal Guide and into the groove on the fuel injectors.

      Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.

    4. Remove the special tools.

    GFD554399Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure the Teflon® seal is fully seated in the groove on the fuel injector before sizing the Teflon® seal.
    NOTE: The beveled opening of the Teflon® seal sizer tool goes away from the seal.
    NOTE: Do not use the injector without re-forming the Teflon seal after replacing.

    1. Use a soft brush to clean the inside of the re-forming tool before each use.
    2. Massage and warm the Teflon® seal with your fingers before the Teflon® seal sizer tool is installed. This will aid in installing the Teflon® seal sizer tool.
    3. Position the Teflon® seal sizer tool with the larger opening towards the Teflon® seal. Push while turning the Teflon® seal sizer tool 180 degrees.

      Use Special Service Tool: 303-1567 Sizer, Teflon Seal.

    4. Once the Teflon® seal sizer tool is installed, check and make sure the Teflon® seal is in the sizing portion of the Teflon® seal sizer tool.
    5. After one minute, turn the Teflon® seal sizer tool back 180 degrees and remove.

    GFD554400Courtesy of FORD MOTOR COMPANY
  3. NOTE: Take care to prevent foreign substances from adhering to the O-ring or the seal surface.
    NOTE: Take care to prevent foreign substances from entering the fuel injector inlet.
    NOTE: Make sure that new fuel injector support rings and new fuel injector O-ring seals are installed.

    1. NOTE: The new the fuel injector support rings must be installed in the correct orientation with the wide surface area facing up against the fuel injector O-ring seals. Improperly installed support rings may cause the fuel system to leak.

      Install the new the fuel injector support rings.

    2. Install the new fuel injector O-ring seals.
    3. Install the new the fuel injector clips.

    GFD557152Courtesy of FORD MOTOR COMPANY
  4. NOTE: Do not re-use a fuel injector if it is dropped. Any damage to the fuel injector may cause driveability concerns or catastrophic failure of the engine.
    NOTE: The anti-rotation finger of the fuel injector must slip into the groove of the fuel rail cup.

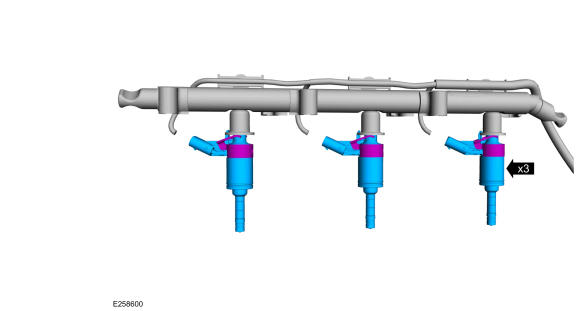

    Install the fuel injectors to the fuel rail.

    GFD557147Courtesy of FORD MOTOR COMPANY

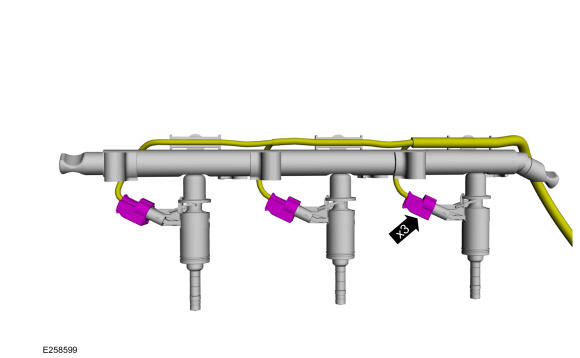

  5. Connect the fuel injector electrical connectors.
    GFD557146Courtesy of FORD MOTOR COMPANY
  6. NOTE: Do not touch the fuel injector nozzle when installing into the cylinder head. Take care to prevent damage to the fuel injector pocket and the Teflon seal. Do not apply bending forces to the fuel injectors. Any damage to the fuel injector may cause driveability concerns or catastrophic failure of the engine.
    NOTE: Do not lubricate the new lower Teflon® fuel injector seals.

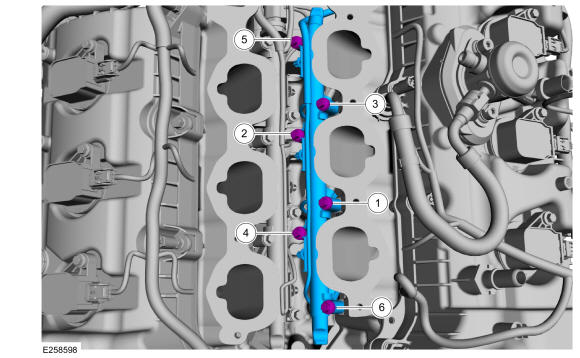

    Install the fuel rail, push down on the fuel rail above the fuel injectors, then tighten the fuel rail bolts in the following 2 stages, in the sequence shown in illustration.

    Torque

    :Stage 1: Tighten to : 89 lb.in (10 Nm)

    Stage 2: Tighten an additional : 45°

    Fig 1: Tightening Fuel Rail Bolts In Sequence
    GFD557153Courtesy of FORD MOTOR COMPANY
  7. NOTE: Make sure that a new high-pressure fuel tube is installed.

    1. Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas in illustration.
      G00468730Courtesy of FORD MOTOR COMPANY
    2. NOTE: In stage 3, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 55 lb.ft (75 Nm), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.

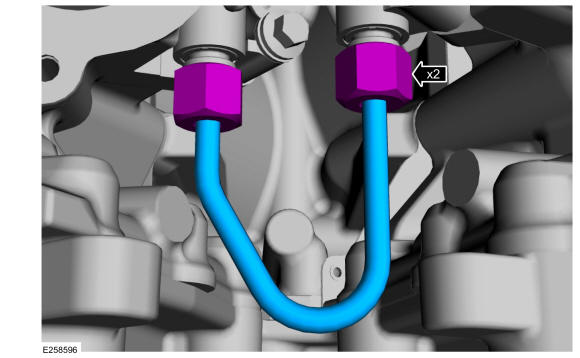

      Install the high-pressure fuel tube and tighten the flare nuts finger tight, then tighten the flare nuts in the following 3 stages.

      Torque

      :Stage 1: Tighten to : 62 lb.in (7 Nm)

      Stage 2: Tighten to : 89 lb.in (10 Nm)

      Stage 3: Tighten an additional : 30°

    GFD557154Courtesy of FORD MOTOR COMPANY

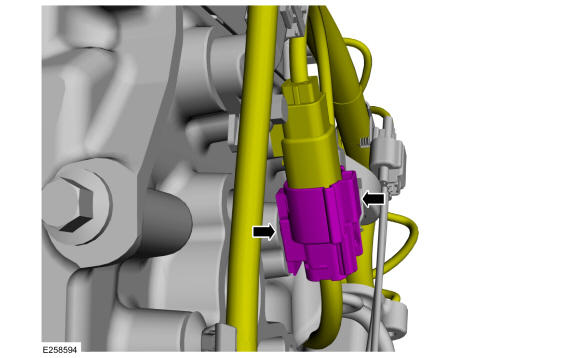

  8. Connect the fuel injector main harness electrical connector. Attach the electrical connector retainer to the cylinder head.
    GFD557143Courtesy of FORD MOTOR COMPANY
  9. NOTE: Make sure that a new high-pressure fuel tube and a new retaining nut is installed.

    1. Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas in illustration.
      G00468730Courtesy of FORD MOTOR COMPANY
    2. Install the new high-pressure fuel tube and tighten the flare nuts finger tight.
    3. Install new the high-pressure fuel tube retaining nut finger tight.
    4. NOTE: In stage 3, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 55 lb.ft (75 Nm), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.

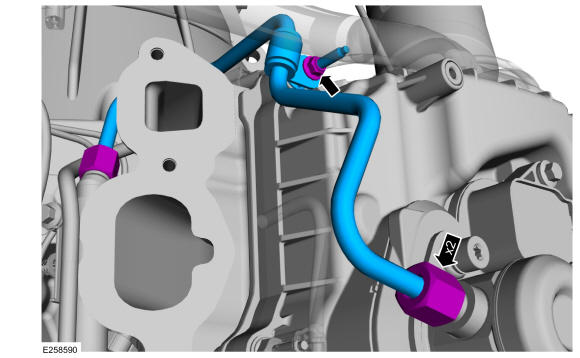

      Tighten the high-pressure fuel tube flare nuts in the following 3 stages.

      Torque

      :Stage 1: Tighten to : 80 lb.in (9 Nm)

      Stage 2: Tighten to : 89 lb.in (10 Nm)

      Stage 3: Tighten an additional : 30°

    5. Tighten the high-pressure fuel pump to fuel rail high-pressure fuel tube retaining nut.

      Torque

      : 71 lb.in (8 Nm)

    GFD557155Courtesy of FORD MOTOR COMPANY

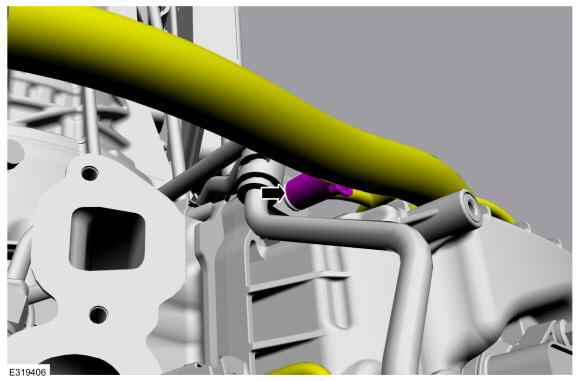

  10. Attach the harness retainer.
    GFD557141Courtesy of FORD MOTOR COMPANY
  11. Install the left front fender splash shield. Refer to: Fender Splash Shield .
  12. Install the lower intake manifold. Refer to: Lower Intake Manifold .

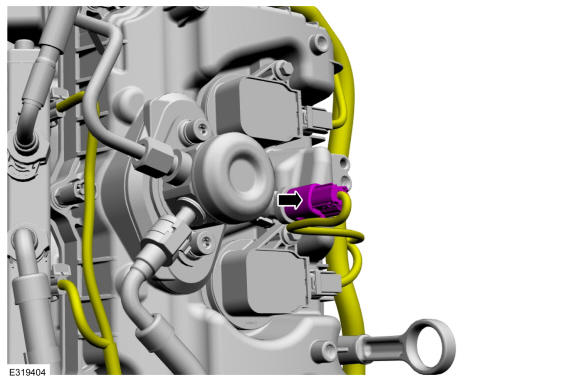

  13. Connect the high-pressure fuel pump electrical connector.
GFD557140Courtesy of FORD MOTOR COMPANY
