Transmission Fluid Heater Coolant Control Valve: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

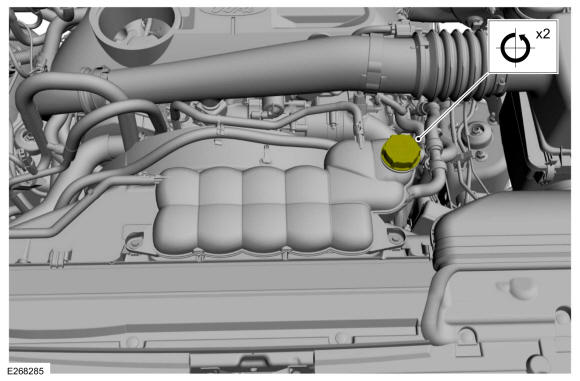

- WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.
Loosen the pressure relief cap.

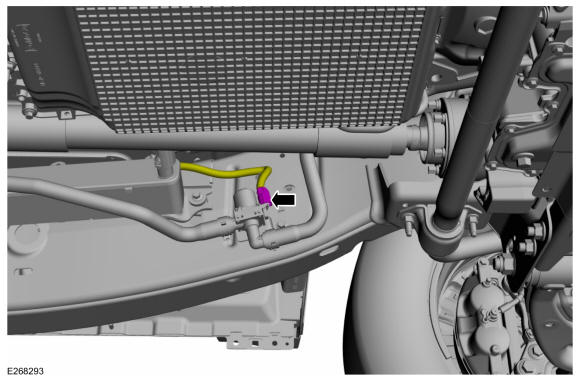

- Disconnect the electrical connector.
- Clamp off the coolant hoses.

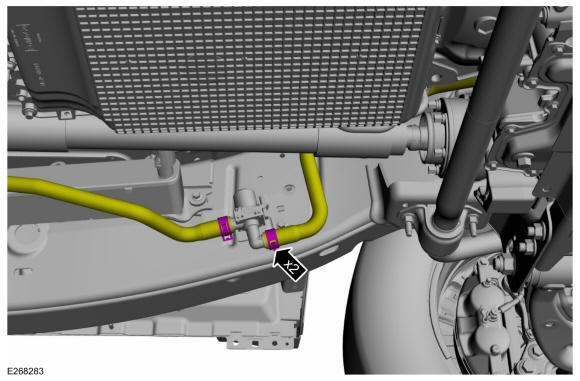

- Release the clamps and disconnect the coolant hoses.
Use the General Equipment: Hose Clamp Remover/Installer

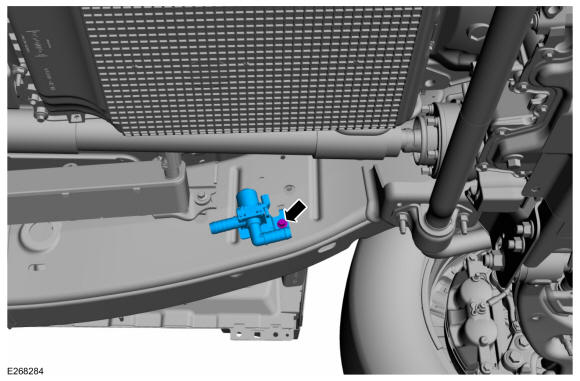

- Remove the bolt and the transmission fluid heater coolant control valve.
Torque
: 177 lb.in (20 Nm)
