Removal And Installation: Thermostat: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the coolant inlet connector. Refer to: Coolant Inlet Connector .

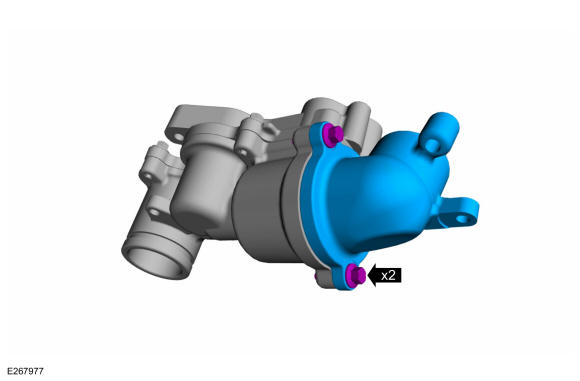

Remove the bolts and the coolant inlet connector connection.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

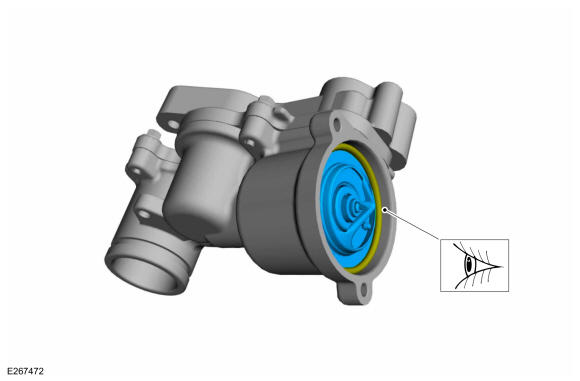

Remove the thermostat. Inspect the O-ring seal and replace if necessary.

Courtesy of FORD MOTOR COMPANY
