Heater Hoses: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on hoist. Refer to: Jacking and Lifting - Overview .
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the engine appearance cover.
- Remove the cooling fan lower shroud. Refer to: Cooling Fan Lower Shroud .

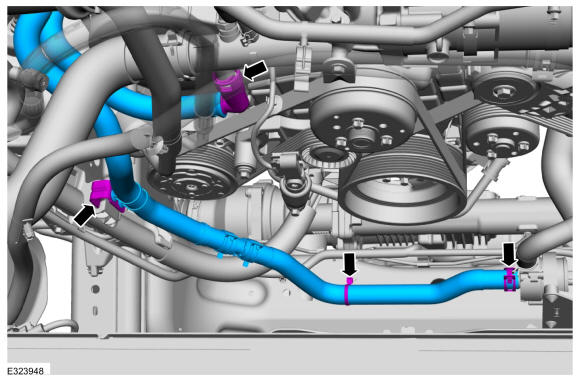

- Disconnect the heater hose retainers. Disconnect and position out the heater hoses.

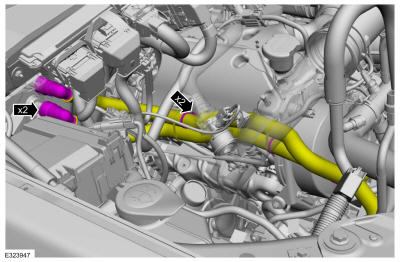

- Disconnect the tie strap and the heater hose retainer. Disconnect and remove the heater hoses.
Use the General Equipment: Hose Clamp Remover/Installer
