Coolant Pump: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the mechanical cooling fan. Refer to: Cooling Fan .
- Loosen the coolant pump pulley bolts.

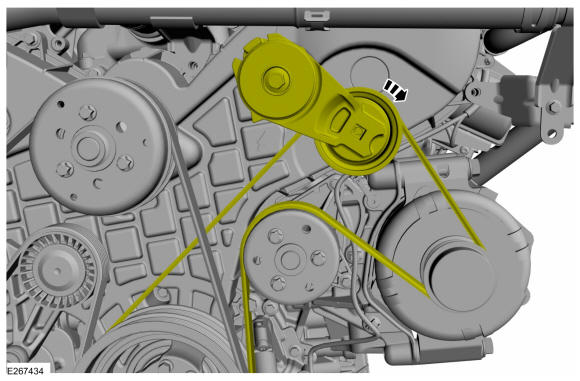

- Rotate the accessory drive belt tensioner clockwise and position aside the accessory drive belt.

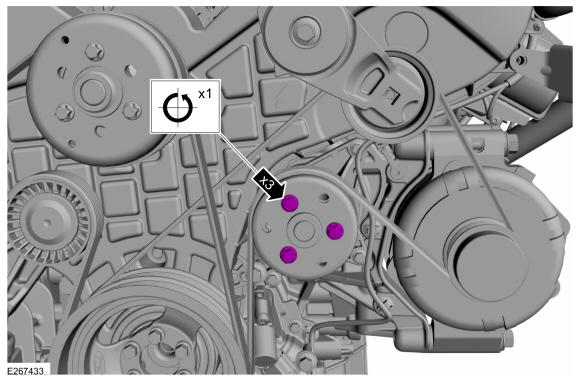

- Remove the bolts and the coolant pump pulley.
- Remove the bolts and the coolant pump.

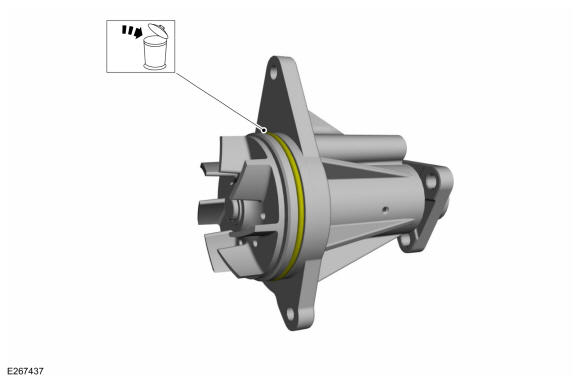

- Remove and discard the O-ring seal.
- Clean and inspect the O-ring seal surface for debris or damage.
