Coolant Inlet Connector: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the LH front wheel and tire. Refer to: Wheel and Tire .
- Remove the LH fender splash shield. Refer to: Fender Splash Shield .
- Remove the generator. Refer to: Generator - 3.0L Power Stroke Diesel .

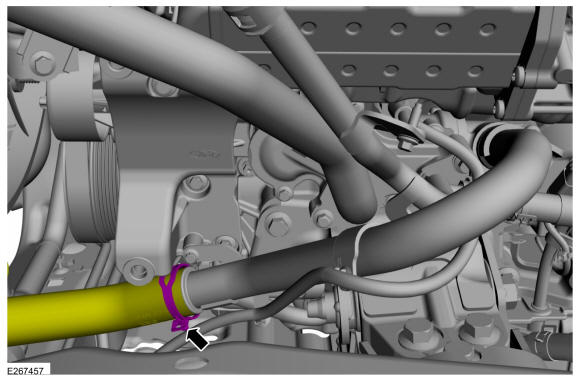

- Release the clamp and disconnect the lower radiator hose from coolant inlet tube.
Use the General Equipment: Hose Clamp Remover/Installer

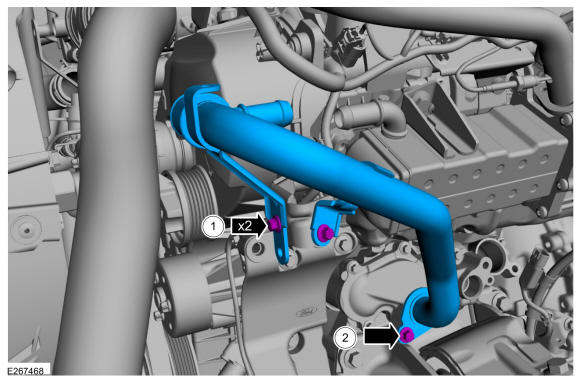

- Remove the coolant inlet tube bracket bolts and detach the block heater wiring harness retainers.
Torque
: 1: 71 lb.in (8 Nm)
2: 18 lb.ft (25 Nm)

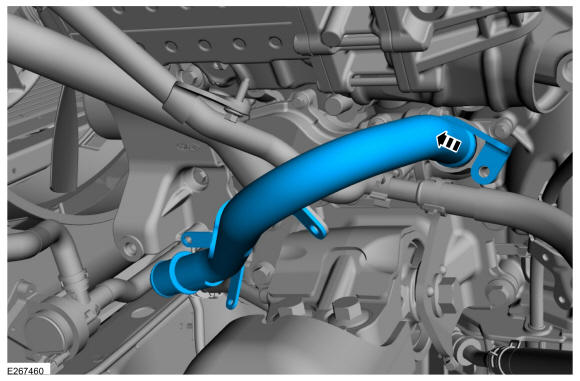

- Remove the coolant inlet tube.
- Inspect the O-ring seal and replace if necessary.
-
- Detach the block heater cable retainer clip.
- Release the clamp and disconnect the transmission cooler hose.
Use the General Equipment: Hose Clamp Remover/Installer

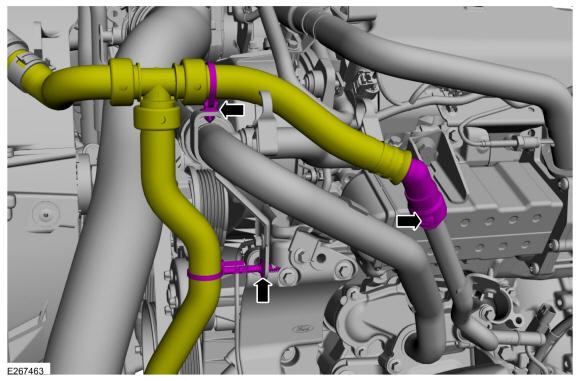

- Detach the pin-type retainers and disconnect the coolant hose quick connect coupling.

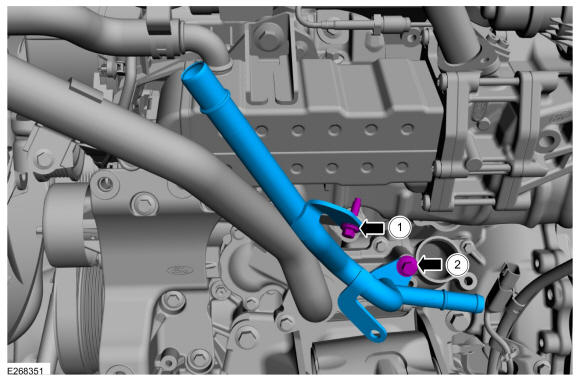

- Remove the bolts and the heater outlet tube.
Torque
: 1: 71 lb.in (8 Nm)
2: 18 lb.ft (25 Nm)
- Inspect the O-ring seal and replace if necessary.

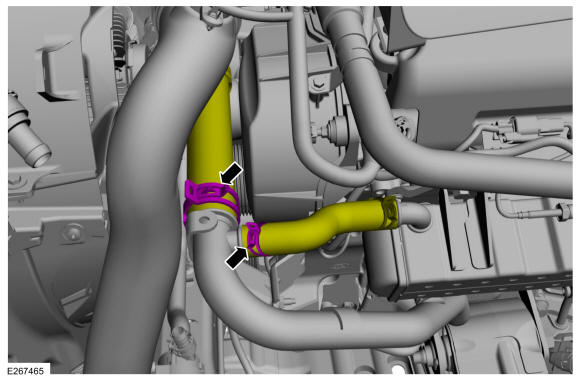

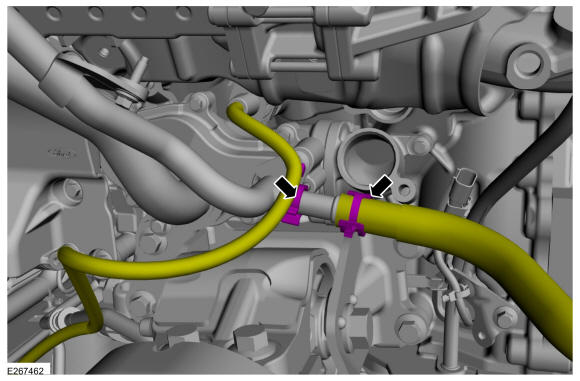

- Release the clamps and disconnect the coolant hoses.
Use the General Equipment: Hose Clamp Remover/Installer

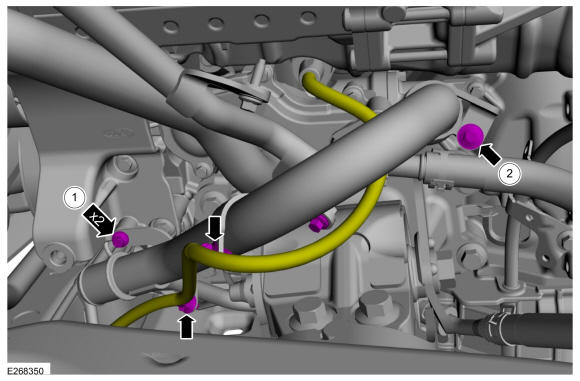

- Remove the bolts and the coolant bypass tube.
Torque
: 1: 71 lb.in (8 Nm) 2: 18 lb.ft (25 Nm)

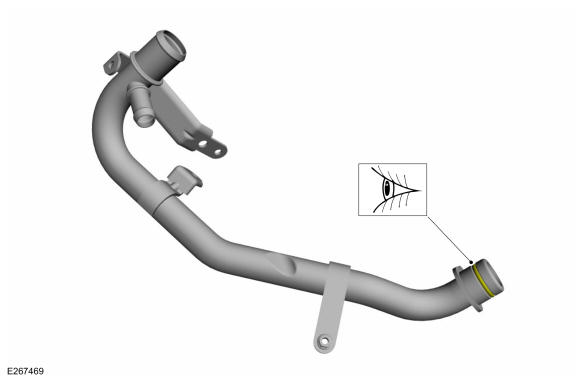

- Inspect the O-ring seal and replace if necessary.

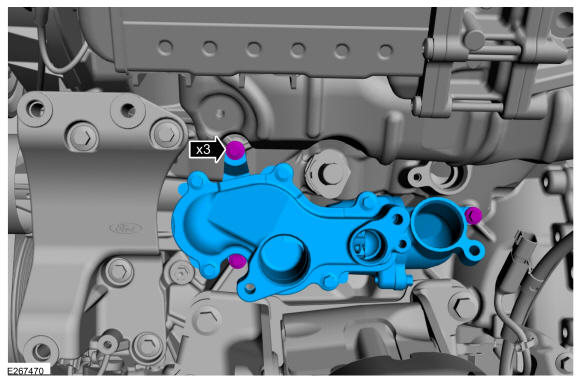

- Remove the bolts and the coolant inlet connector.
Torque
: 89 lb.in (10 Nm)

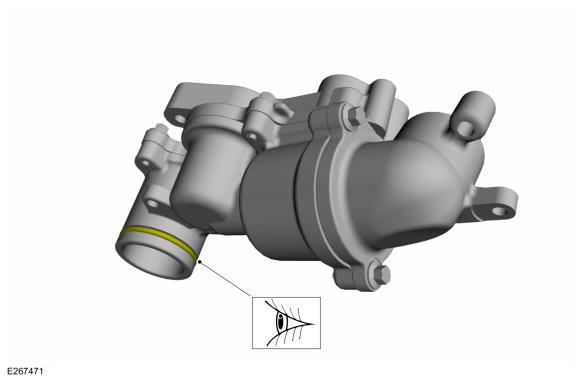

- Inspect the O-ring seal and replace if necessary.
