Exhaust Gas Recirculation (EGR) Valve: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Disconnect the EGR transducer electrical connector.
- Remove the bolt, hoses and the EGR transducer.
Courtesy of FORD MOTOR COMPANY

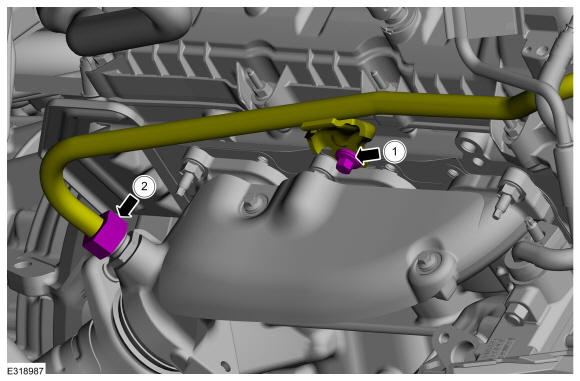

1. Remove the fastener.
2. Remove the EGR inlet tube nut.
Courtesy of FORD MOTOR COMPANY

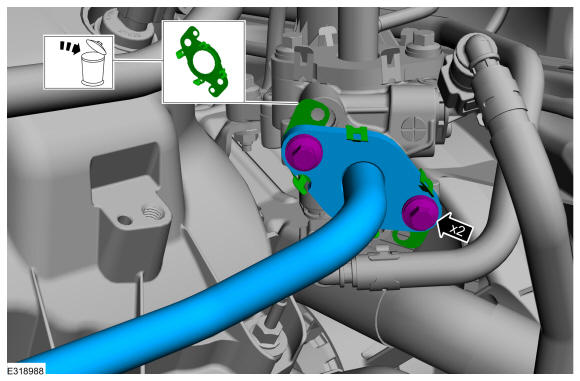

- Remove the fasteners.
- Remove the EGR valve inlet tube.
- Remove the gasket and discard.
Courtesy of FORD MOTOR COMPANY
Loosen the EGR valve bracket nut and bolts.

Courtesy of FORD MOTOR COMPANY
Disconnect the upper quick release coupling and position aside the coolant hose. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

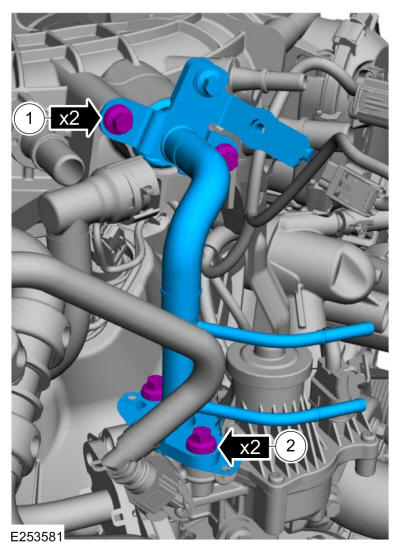

1. Remove the EGR tube to intake manifold bolts.
2. Remove the bolts and the EGR tube.
Courtesy of FORD MOTOR COMPANY

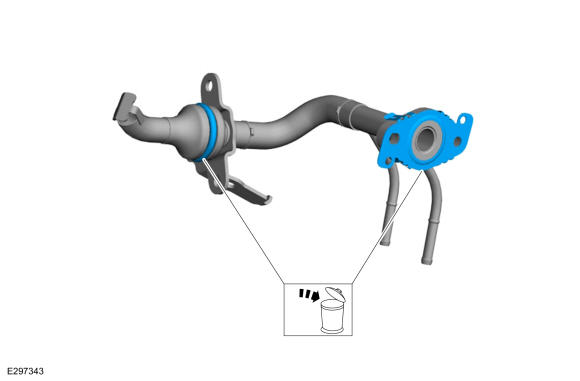

Remove and discard the EGR tube o-ring seal and gasket.

Courtesy of FORD MOTOR COMPANY

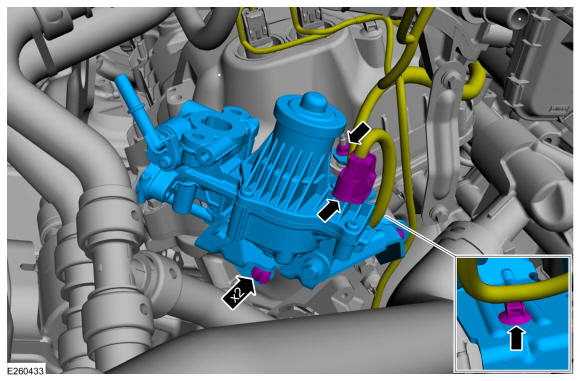

- Disconnect the EGR valve electrical connector and detach the retainer on the EGR valve bracket.
- Remove the EGR valve bracket mounting bolts.
Courtesy of FORD MOTOR COMPANY

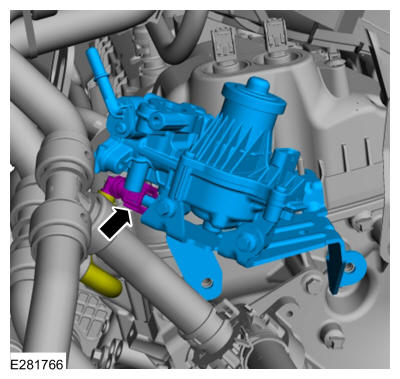

Lift the EGR valve to gain access to disconnect the lower coolant hose on EGR valve assembly then remove EGR valve.

Courtesy of FORD MOTOR COMPANY

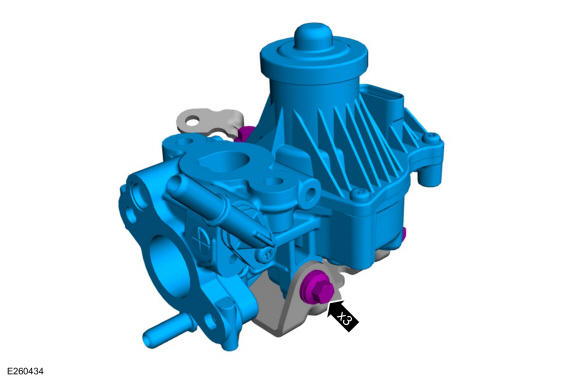

Remove the EGR valve mounting bolts and remove the EGR valve.
