Exhaust Gas Recirculation (EGR) Valve: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the exhaust gas recirculation (EGR) valve gasket.

WARNING: Make sure that the mating faces are clean and free of foreign material.

Material

: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

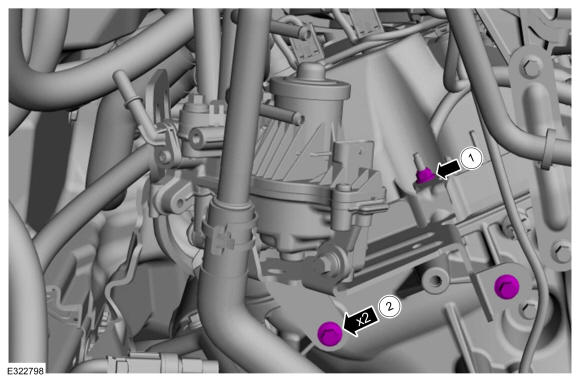

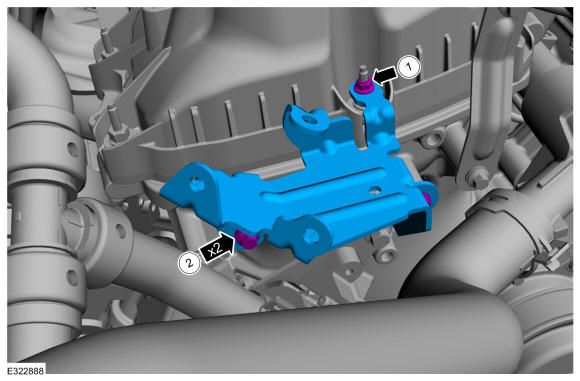

Install the EGR valve mounting bracket and tighten the fasteners.
Torque

: 1: 71 lb.in (8 Nm)

2: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the lower coolant hose on EGR valve assembly.

Courtesy of FORD MOTOR COMPANY

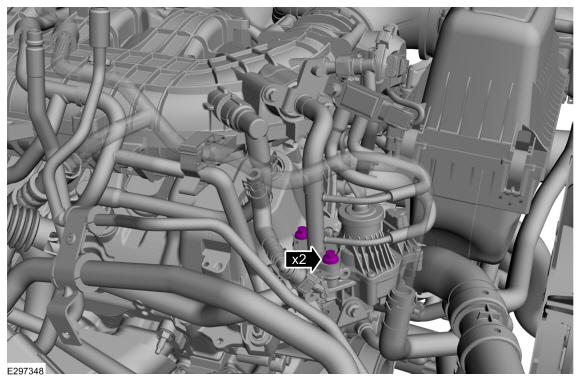

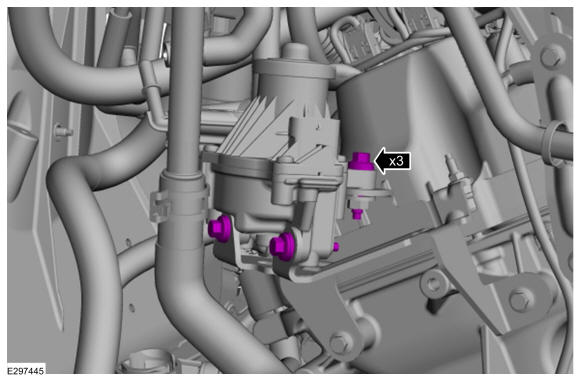

Install the EGR valve fasteners.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

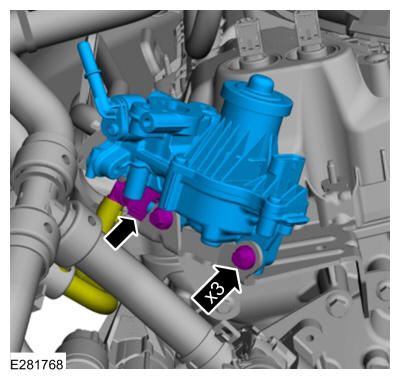

Loosen the EGR valve bracket fasteners.

Courtesy of FORD MOTOR COMPANY

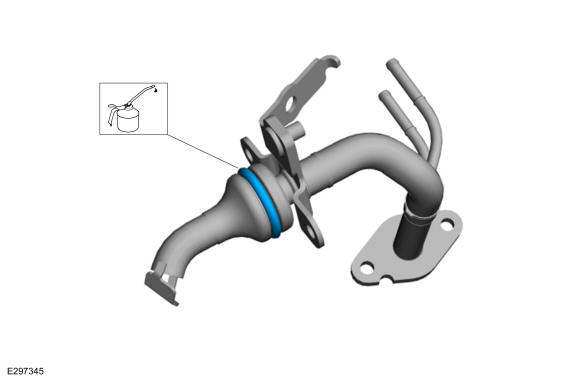

- Install new EGR tube o-ring seal and gasket.
- Lubricate the o-ring seal with clean engine oil.
Courtesy of FORD MOTOR COMPANY

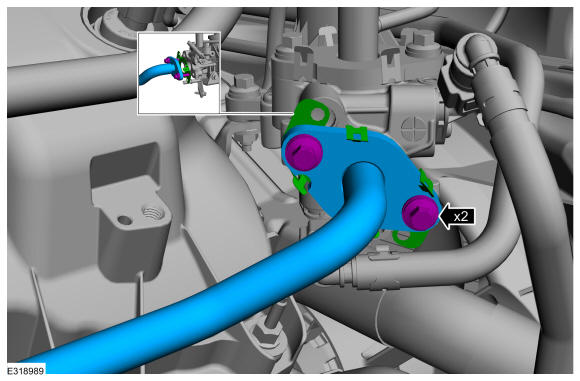

- Install the new gasket.
- Install the EGR valve outlet tube.
- Install the fasteners and hand tighten at this stage.
Courtesy of FORD MOTOR COMPANY

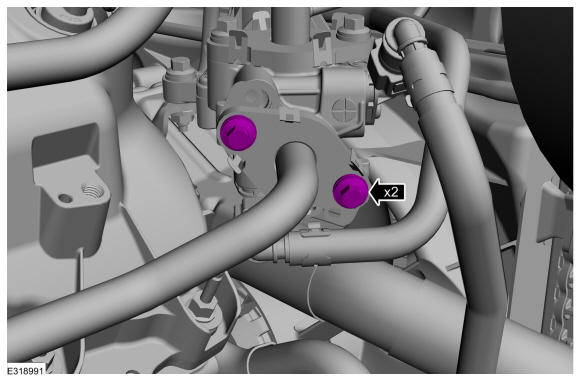

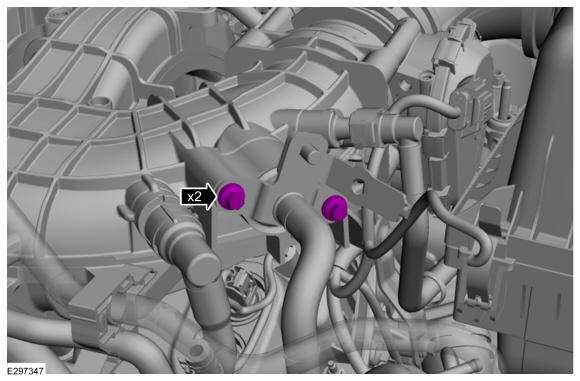

Tighten the EGR outlet tube fasteners.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the EGR outlet tube fasteners.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

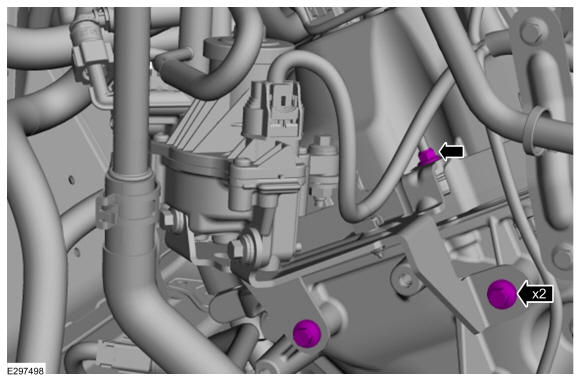

1. Tighten the EGR valve bracket fasteners.
  Torque

  : 71 lb.in (8 Nm)
2. Tighten the EGR valve bracket fastener.
  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

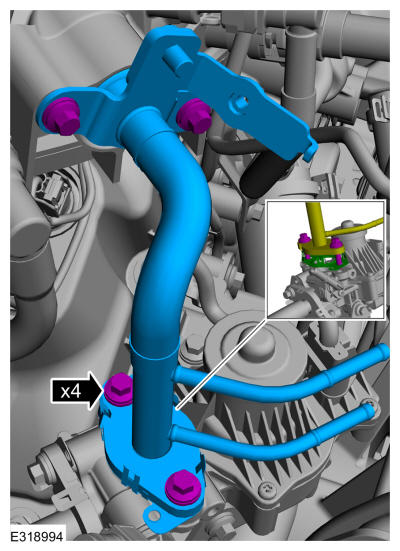

- Install the new gasket.
- Install the EGR valve inlet tube.
- Install the fasteners and hand tighten at this stage.
Courtesy of FORD MOTOR COMPANY

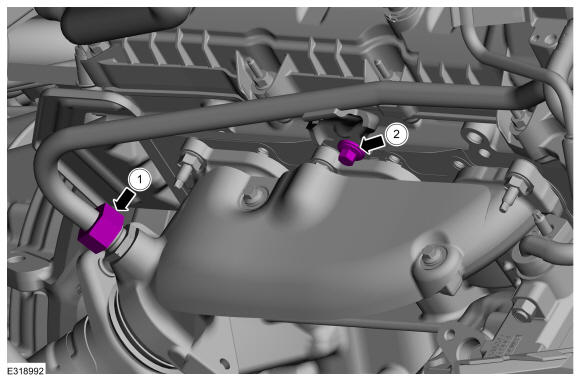

1. Install the EGR inlet tube nut and hand tighten at this stage.
2. Install the fastener and hand tighten at this stage.
Courtesy of FORD MOTOR COMPANY
Tighten the EGR inlet tube fasteners.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

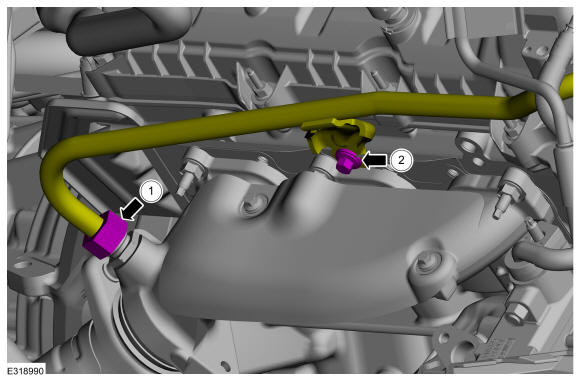

1. Tighten the EGR inlet tube nut.
  Torque

  : 30 lb.ft (40 Nm)
2. Tighten the EGR inlet tube bracket fastener.
  Torque

  :Stage 1: 177 lb.in (20 Nm)

  Stage 2: 45°
Courtesy of FORD MOTOR COMPANY

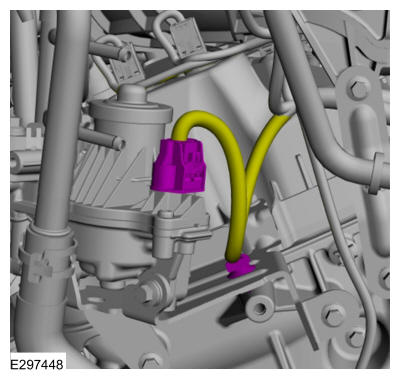

Connect the EGR valve electrical connector and attach the retainer to the EGR valve bracket.

Courtesy of FORD MOTOR COMPANY

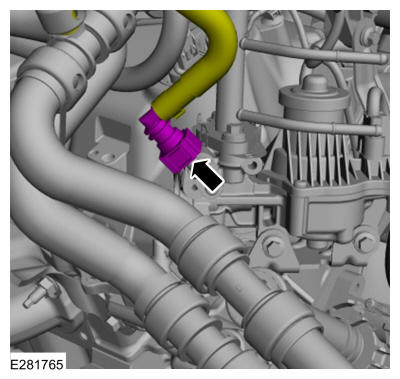

Connect the quick release coupling. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

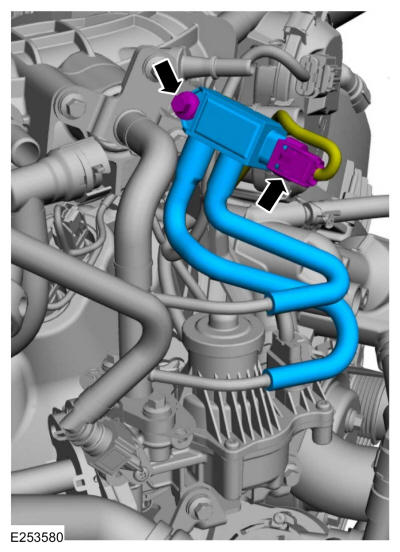

- Install the hoses, EGR transducer and the bolt.
  Torque

  : 80 lb.in (9 Nm)
- Connect the EGR transducer electrical connector.
Courtesy of FORD MOTOR COMPANY
Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
