Exhaust Gas Recirculation (EGR) Outlet Tube: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential pressure feedback EGR sensor. Refer to: Differential Pressure Feedback Exhaust Gas Recirculation (EGR) Sensor .
  2. Loosen the EGR inlet tube fasteners.
    GFD557801Courtesy of FORD MOTOR COMPANY
    1. Loosen the EGR inlet tube nut.
    2. Loosen the EGR inlet tube bracket fastener.
    GFD557802Courtesy of FORD MOTOR COMPANY
  4. Loosen the EGR valve bracket fasteners.

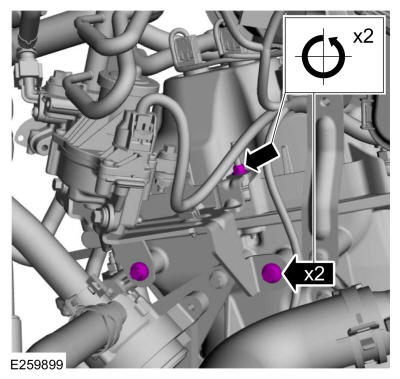

    GFD557803Courtesy of FORD MOTOR COMPANY
  5. Remove the fasteners and EGR valve outlet tube.

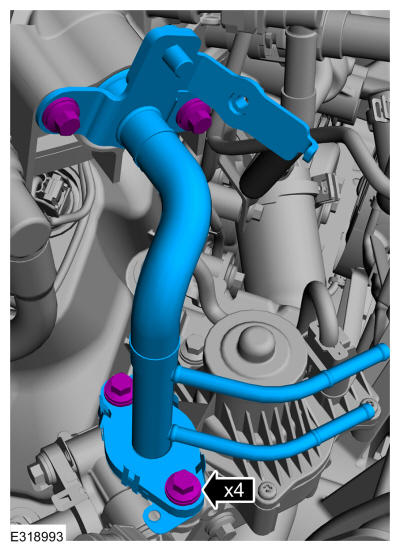

    GFD557804Courtesy of FORD MOTOR COMPANY
    • Remove and discard the EGR tube o-ring seal and gasket.

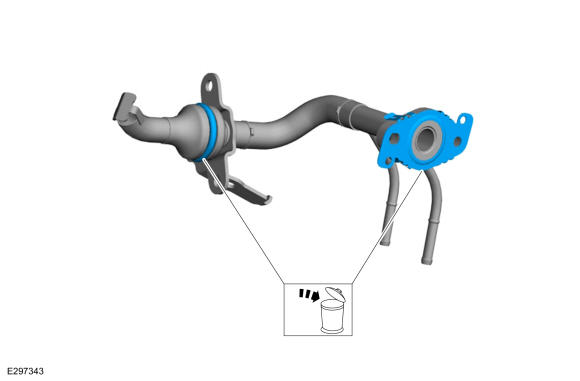

GFD557805Courtesy of FORD MOTOR COMPANY
