Exhaust Gas Recirculation (EGR) Outlet Tube: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

- Install the new o-ring.
- Lubricate the o-ring seal with clean engine oil.
Courtesy of FORD MOTOR COMPANY

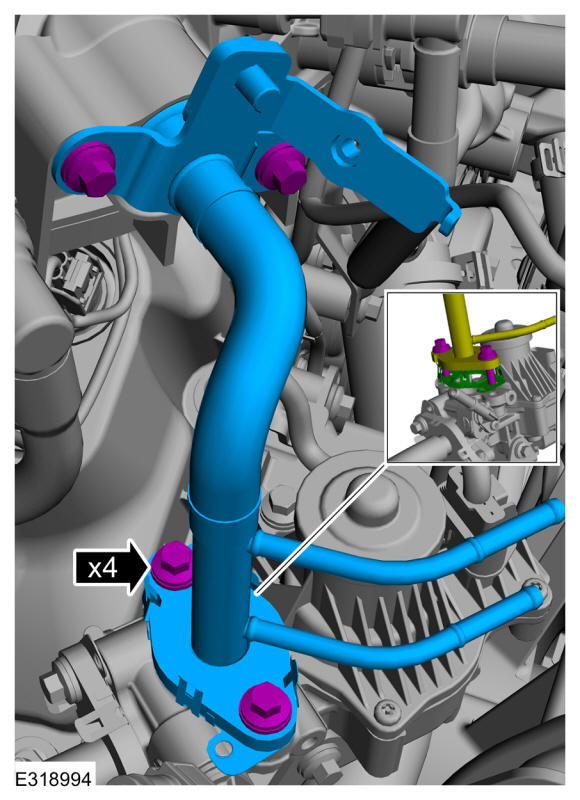

- Install the new gasket.
- Install the EGR valve outlet tube.
- Install the fasteners and hand tighten at this stage.
Courtesy of FORD MOTOR COMPANY

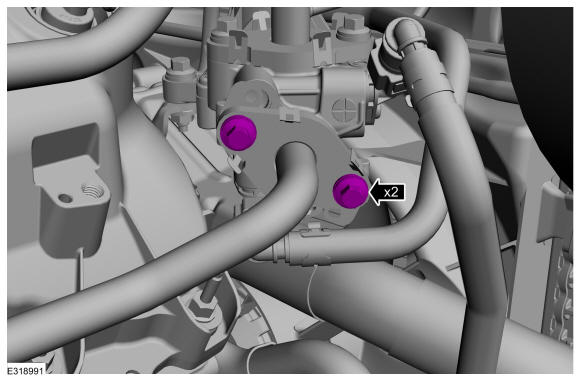

- Tighten the EGR outlet tube fasteners.
  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

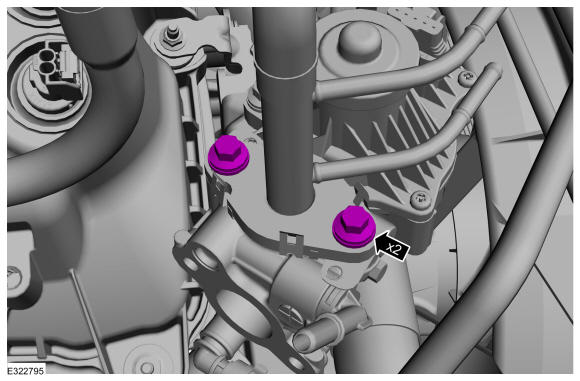

Tighten the EGR outlet tube fasteners.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

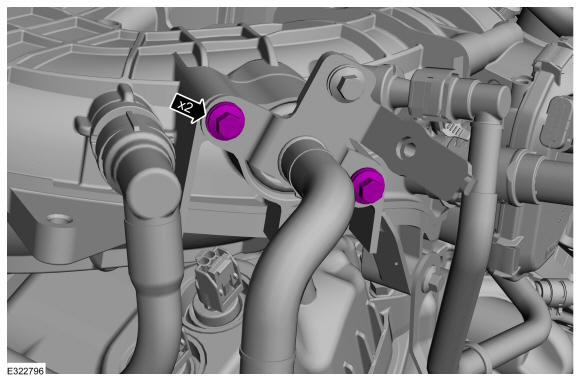

1. Tighten the EGR valve bracket fasteners.
  Torque

  : 71 lb.in (8 Nm)
2. Tighten the EGR valve bracket fastener.
  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
Tighten the EGR inlet tube fasteners.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

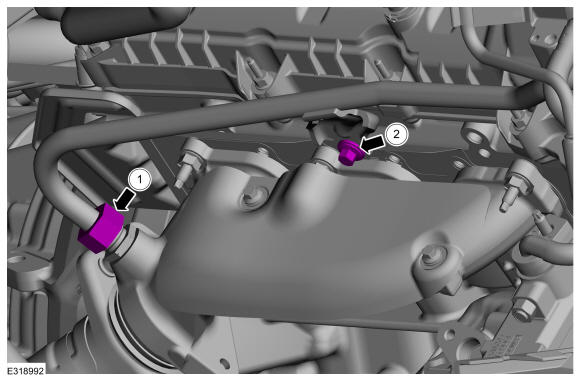

- Tighten the EGR inlet tube nut.
  Torque

  : 30 lb.ft (40 Nm)
- Tighten the EGR inlet tube bracket fastener.
  Torque

  :Stage 1: 177 lb.in (20 Nm)

  Stage 2: 45°
Courtesy of FORD MOTOR COMPANY
Install the differential pressure feedback EGR sensor. Refer to: Differential Pressure Feedback Exhaust Gas Recirculation (EGR) Sensor .
