Exhaust Gas Recirculation (EGR) Inlet Tube: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

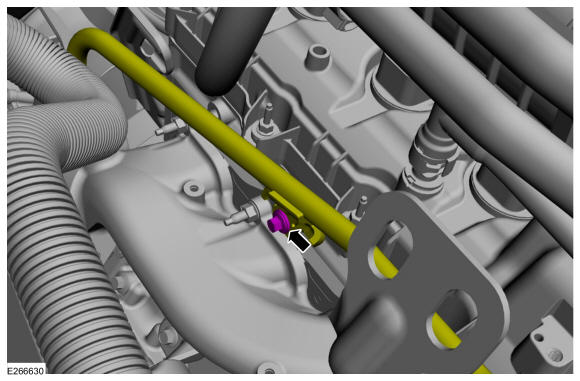

    • Remove the fastener.
    GFD557794Courtesy of FORD MOTOR COMPANY

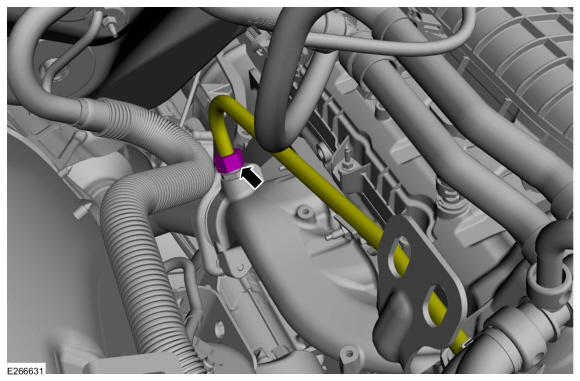

    • Remove the fastener.
    GFD557795Courtesy of FORD MOTOR COMPANY

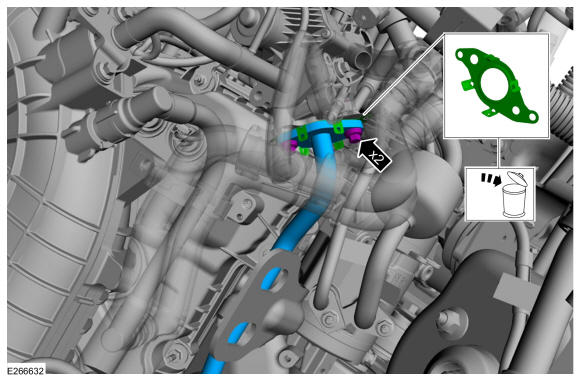

    • Remove the fasteners.

    • Remove the gasket and discard.

    • Remove the EGR valve inlet tube.

GFD557796Courtesy of FORD MOTOR COMPANY
