Exhaust Gas Recirculation (EGR) Inlet Tube: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

- Install the new gasket.
  Material

  : Motorcraft® Penetrating and Lock Lubricant / XL-1

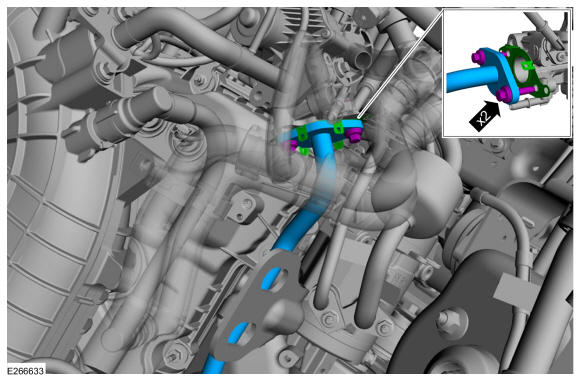

- Install the EGR valve inlet tube.

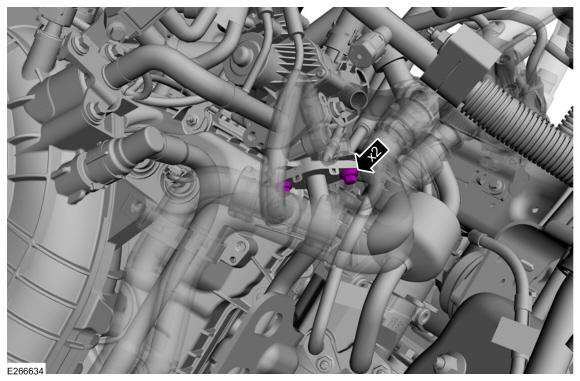

- Install the fasteners and hand tighten at this stage.
Courtesy of FORD MOTOR COMPANY

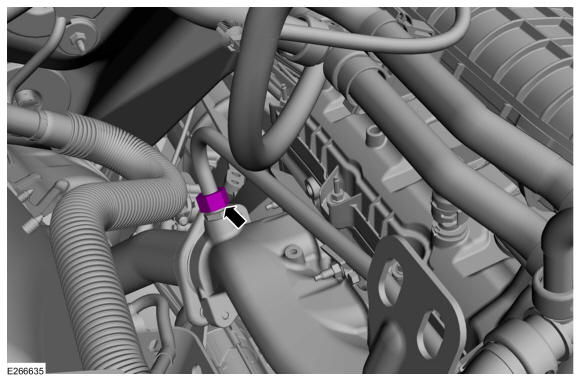

- Install the fastener and hand tighten at this stage.
Courtesy of FORD MOTOR COMPANY

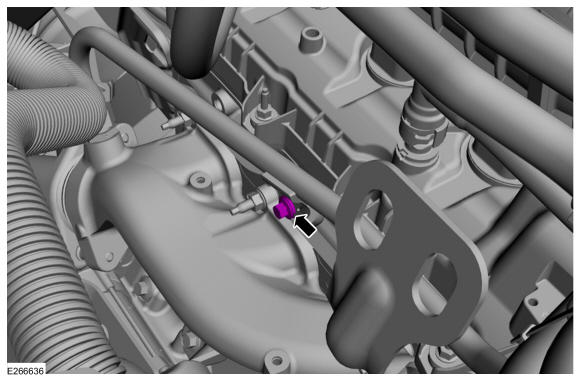

- Install the fastener and hand tighten at this stage.
Courtesy of FORD MOTOR COMPANY
- Torque
  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
- Torque
  : 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY
- Torque
  :Stage 1: 177 lb.in (20 Nm)

  Stage 2: 45°

Courtesy of FORD MOTOR COMPANY
