Differential Pressure Feedback Exhaust Gas Recirculation (EGR) Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

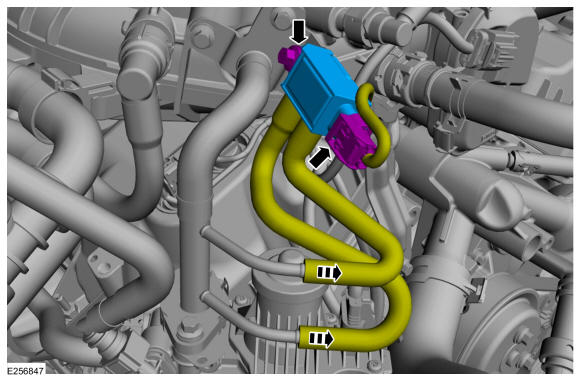

- Disconnect the electrical connector.
- Disconnect the differential pressure sensor hose and position it aside.
- Remove the bolt and remove the differential pressure sensor.
  Torque

  : 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
