EGR system

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

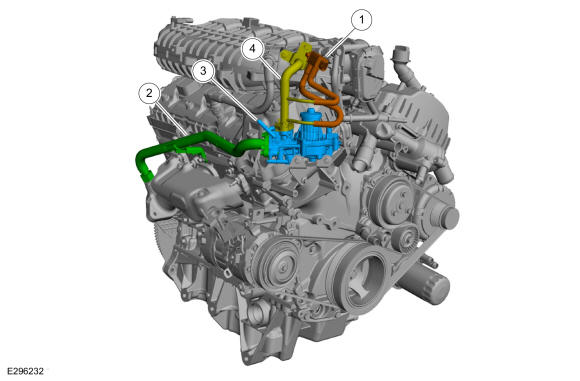

GFD557766Courtesy of FORD MOTOR COMPANY
Item Description
1 EGR Differential pressure feedback sensor.
2 EGR inlet tube.
3 EGR valve.
4 EGR outlet tube.
