Thermostat Housing: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

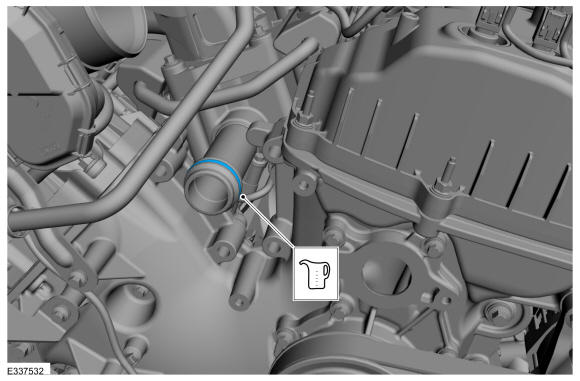

  1. Install an new O-ring seal and lubricate it with clean engine coolant. Refer to: Specifications .
    GFD556776Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
  3. Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
