Heater Hoses: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Both hoses

With the vehicle in NEUTRAL, position it on hoist. Refer to: Jacking and Lifting - Overview .
Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the RH fender splash shield. Refer to: Fender Splash Shield .

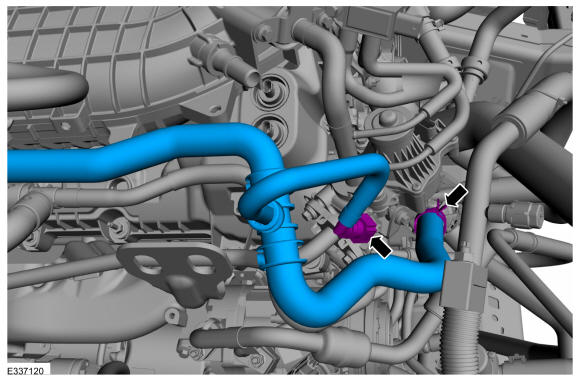

Follow the directions to release quick release coupling type 3. Disconnect the coolant tubes. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

Heater inlet hose

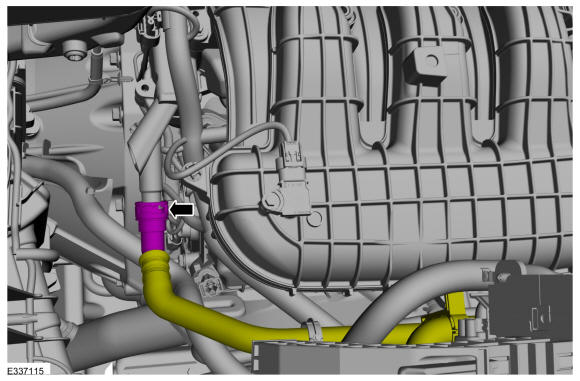

Follow the directions to release quick release coupling type 3. Disconnect the coolant tube. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Follow the directions to release the quick release coupling type 25. Disconnect the EGR cooler tube. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

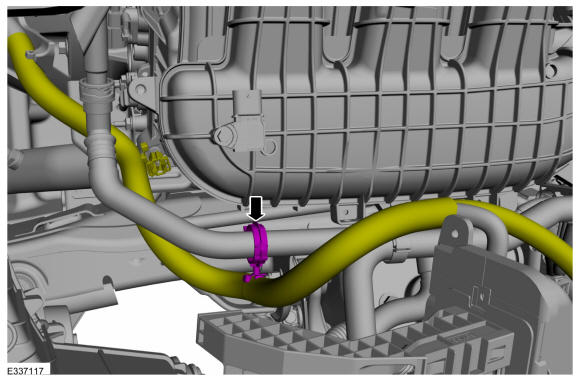

Detach the coolant hose retainer.

Courtesy of FORD MOTOR COMPANY

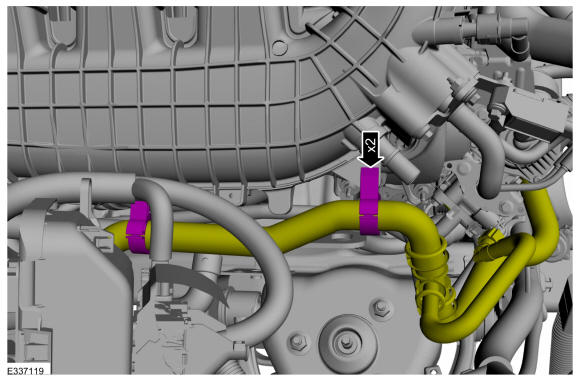

- Detach the coolant hose retainers.
- Remove the heater inlet hose.
Courtesy of FORD MOTOR COMPANY

Heater outlet hose
Detach the coolant hose retainers.

Courtesy of FORD MOTOR COMPANY
- Follow the directions to release the quick release coupling type 25. Disconnect the EGR cooler tube. Refer to: Quick Release Coupling .
- Release the clamp and remove the heater outlet hose.
  Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
