Block Heater: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system. Refer to: Block Heater .
Remove the front LH wheel and tire. Refer to: Wheel and Tire .

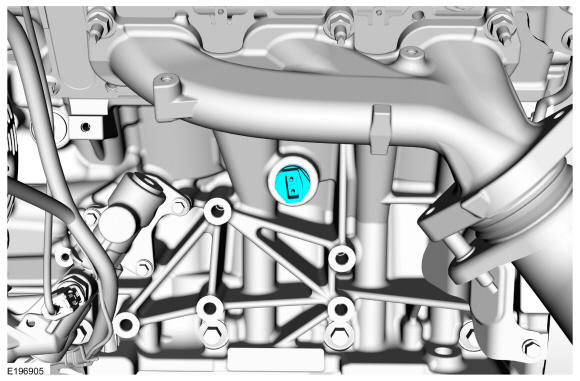

NOTE: Access the block heater from the inner fender well.

NOTE: Make sure the block heater wiring is routed and secured away from rotating or hot components.

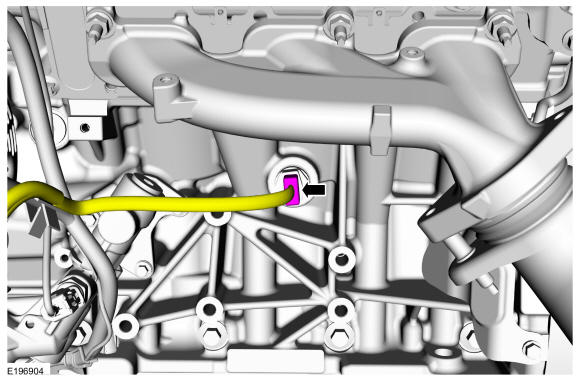

Disconnect the block heater electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the block heater.
Torque

: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
