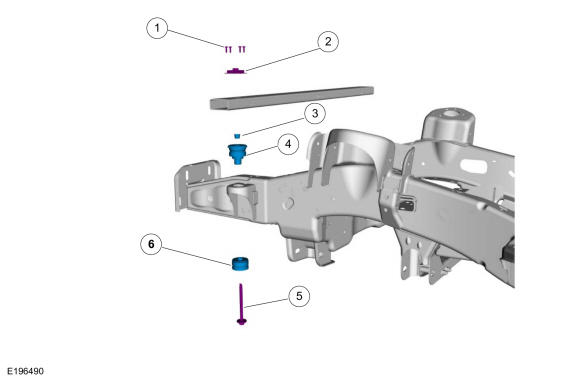

Front End Sheet Metal (FESM) Body Mount LH/RH
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
Torque |
| 1 |
Body retainer cage nut rivet (4 required) |
-- |
| 2 |
Body retainer cage nut |
-- |
| 3 |
Cap |
-- |
| 4 |
Upper insulator |
-- |
| 5 |
Body mount bolt |
80 Nm (59 lb-ft) |
| 6 |
Lower insulator |
-- |
