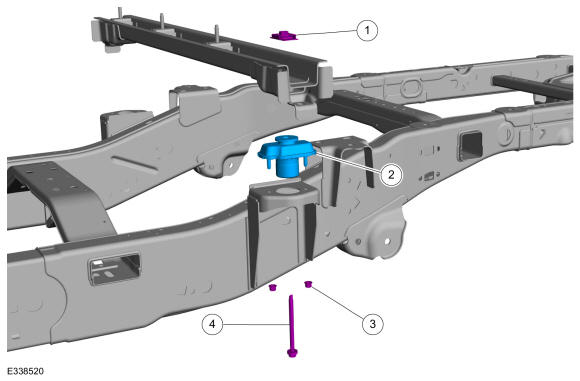

Body Mount -- No. 3, Hydraulic (LH/RH Super Cab and SuperCrew)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
with hydraulic mounts.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
Torque |
| 1 |
Body retainer cage nut |
-- |
| 2 |
Hydraulic body mount |
-- |
| 3 |
Body mount bolt (2 required) |
62 Nm (46 lb-ft) |
| 4 |
Body mount bolt |
103 Nm (76 lb-ft) |
