Ignition Coil-On-Plug: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

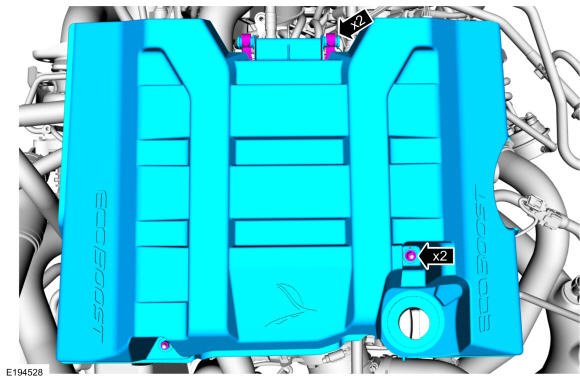

- Remove the engine appearance cover retainers and then remove the engine appearance cover.

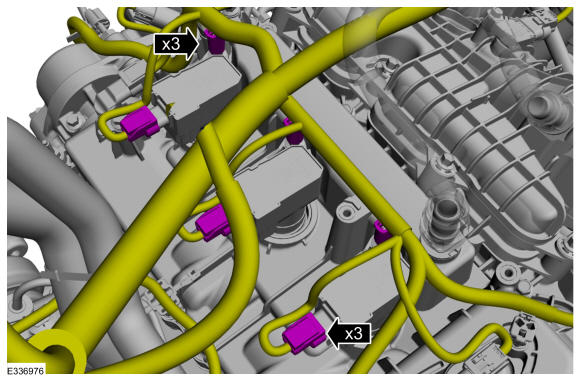

- Disconnect the LH ignition coil-on-plug electrical connectors and detach the wiring harness retainers.

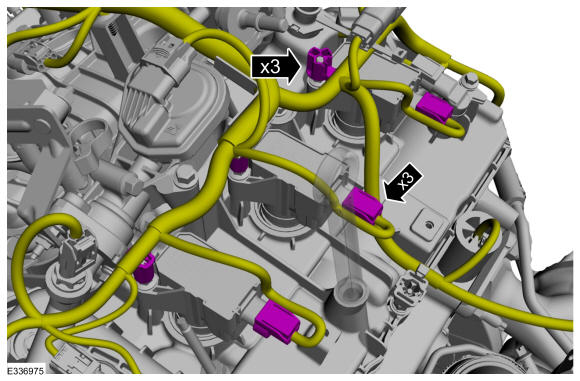

- Disconnect the RH ignition coil-on-plug electrical connectors and detach the wiring harness retainers.
- Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removal.
-
NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

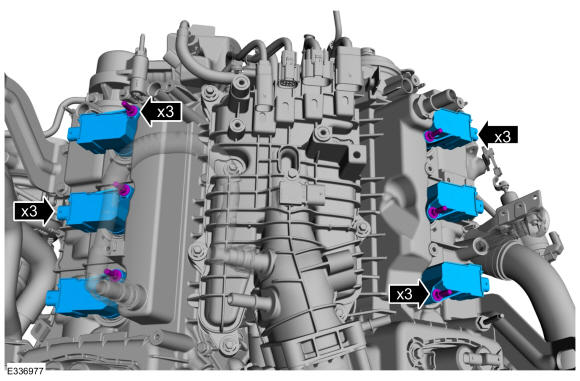

Remove the ignition coil-on-plug studbolts and remove the ignition coil-on-plugs.
Torque
: 53 lb.in (6 Nm)
