Valve Cover RH: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Installation of new seals is only required if damaged seals were removed.
If removed, using the special tools, install the spark plug tube seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer., 205-153 (T80T-4000-W) Handle.
-
NOTE: Installation of new seals is only required if damaged seals were removed.
If removed, using the special tools, install the VCT oil control solenoid seals. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone., 205-153 (T80T-4000-W) Handle.
-
NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned.

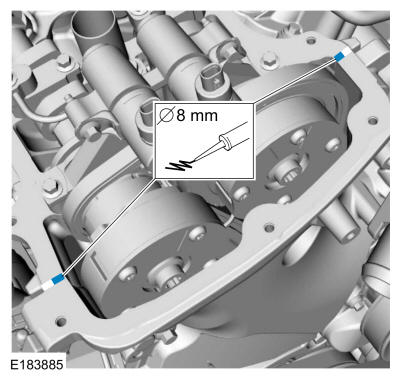

Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.
Material
: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
- Install a new valve cover gasket.

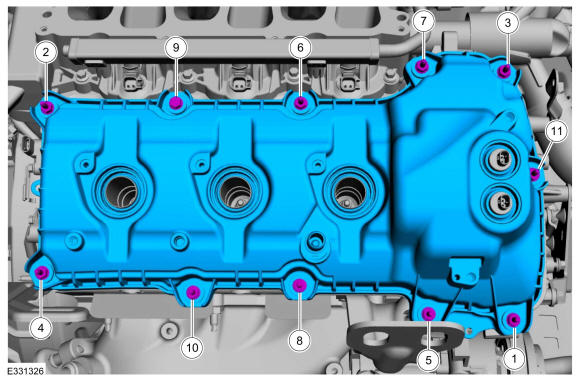

- Install the valve cover and tighten the bolts.
Torque: 89 lb.in (10 Nm)
- Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.
-
- Attach the wiring harness retainers to valve cover.
- Connect the VCT oil control solenoid electrical connectors.
- Attach the wiring harness retainer to the rear valve cover stud bolt.
- Position the ground strap and install the nut on the RH valve cover stud bolt.
Torque: 71 lb.in (8 Nm)
- Follow directions to connect the quick release coupling type 3. Install the PCV tube. Refer to: Quick Release Coupling
.
- Install the RH ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .
